Keysight (Agilent)

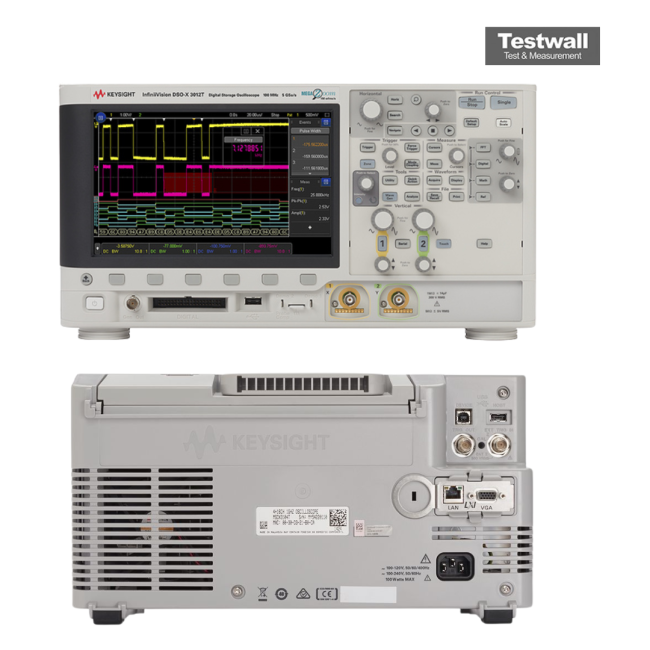

Keysight (Agilent) DSOX3012T
100 MHz, 2 Analog Channels Oscilloscope
100 MHz Bandwidth
2 Analog Channels Number of Channels
2 GSa/s Sample Rate
4 Mpts (standard) Memory Depth
8.5-inch WVGA (800 x 480) capacitive touch screen Display
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 Analog Channels |
| Sample Rate | 2 GSa/s |
| Memory Depth | 4 Mpts (standard) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Triggering | Edge, Pulse Width, Pattern, OR, Rise/Fall Time, Runt, Setup & Hold, Video, Serial |
| Serial Protocol Analysis | I2C, SPI, UART/RS232 (standard); optional CAN, LIN, FlexRay, I2S, MIL-STD-1553 |
| Connectivity | USB Host, USB Device, LAN (LXI), GPIB (optional) |
Keysight (Agilent) DSOX3012T Options:
- DSOX3012T - DSOXT3MSO - MSO upgrade: add 16 digital timing channels
- DSOX3012T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX3012T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX3012T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- DSOX3012T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic)
- DSOX3012T - DSOX3FLEX - FlexRay serial triggering and analysis
- DSOX3012T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- DSOX3012T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- DSOX3012T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- DSOX3012T - DSOXT3DVMCTR - Integrated digital voltmeter and 8-digit counter
- DSOX3012T - DSOX3PWR - Power analysis application
- DSOX3012T - DSOX3MASK - Mask limit testing
- DSOX3012T - DSOX3VID - Enhanced video/TV application package
- DSOX3012T - DSOXEDK - Education and training kit
- DSOX3012T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3DVMCTR, DSOXEDK)
- DSOX3012T - DSOXT3B1T22 - License only 100MHz to 200MHz upgrade, 2ch
- DSOX3012T - DSOXT3B1T32U - Service center 100MHz to 350MHz upgrade, 2ch
- DSOX3012T - DSOXT3B1T52U - Service center 100MHz to 500MHz upgrade, 2ch
- DSOX3012T - DSOXT3B1T102U - Service center 100MHz to 1 GHz upgrade, 2ch
- DSOX3012T - DSOXLAN - LAN/VGA connection module
- DSOX3012T - DSOXGPIB - GPIB connection module
| Model | DSOX3012T |
|---|
The Keysight (Agilent) DSOX3012T from the InfiniiVision 3000T X-Series delivers 100 MHz bandwidth with 2 analog channels and 5 million waveform updates/sec, enabling rapid and detailed signal capture.
Equipped with an 8.5-inch capacitive touchscreen, it supports serial protocol analysis, segmented memory, and upgradeable bandwidth to meet evolving testing needs.
Testwall can supply the used Keysight (Agilent) DSOX3012T, fully tested.
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality.
Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX3012T.
