Teladyne LeCroy HDO4022
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 2.5 GS/s |
| Memory Depth | 12.5 Mpts/ch |
| Vertical Resolution | 12-bit ADC |
| Display | 12.1-inch color touchscreen LCD |
| Input Impedance | 1 MΩ || 13 pF / 50 Ω |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 200 ps/div to 800 s/div |
| Connectivity | USB, Ethernet, HDMI |
Teladyne LeCroy HDO4022 Options:
- HDO4022 - HDO4K-L - 25 Mpts/ch (50 Mpts interleaved) memory
- HDO4022 - HDO4K-RHD - Removable Hard Drive Package (includes removable hard drive kit and two hard drives)
- HDO4022 - HDO4K-RHD-02 - Additional Removable Hard Drive
- HDO4022 - USB2-GPIB - External GPIB Accessory
- HDO4022 - HDO4K-SOFTCASE - Soft Carrying Case
- HDO4022 - HDO4K-RACK - Rack Mount Accessory
- HDO4022 - HDO4K-POUCH - Accessory Pouch
- HDO4022 - HDO4K-FP-GERMAN - German Front Panel Overlay
- HDO4022 - HDO4K-FP-FRENCH - French Front Panel Overlay
- HDO4022 - HDO4K-FP-ITALIAN - Italian Front Panel Overlay
- HDO4022 - HDO4K-FP-SPANISH - Spanish Front Panel Overlay
- HDO4022 - HDO4K-FP-JAPANESE - Japanese Front Panel Overlay
- HDO4022 - HDO4K-FP-KOREAN - Korean Front Panel Overlay
- HDO4022 - HDO4K-FP-CHNES-TR - Chinese (Tr) Front Panel Overlay
- HDO4022 - HDO4K-FP-CHNES-SI - Chinese (Simp) Front Panel Overlay
- HDO4022 - HDO4K-FP-RUSSIAN - Russian Front Panel Overlay
- HDO4022 - HDO4K-ET-PMT - Electrical Telecom Mask Test Package
- HDO4022 - HDO4K-SPECTRUM - Spectrum Analysis Option
- HDO4022 - HDO4K-PWR - Power Analysis Option
- HDO4022 - HDO4K-ARINC429bus DSymbolic - ARINC 429 Symbolic Decode Option
- HDO4022 - HDO4K-Audiobus TD - Audiobus Trigger and Decode Option for I2S, LJ, RJ, and TDM
- HDO4022 - HDO4K-AUTO - CAN, LIN and FlexRay Trigger and Decode Option
- HDO4022 - HDO4K-CAN FDbus TD - CAN FD Trigger and Decode Option
- HDO4022 - HDO4K-CANbus TD - CAN Trigger and Decode Option
- HDO4022 - HDO4K-DPHYbus D - D-PHY Decode Option
- HDO4022 - HDO4K-DigRF3Gbus D - DigRF 3G Decode Option
- HDO4022 - HDO4K-DigRFv4bus D - DigRF v4 Decode Option
- HDO4022 - HDO4K-ENETbus D - ENET Decode Option
- HDO4022 - HDO4K-FlexRaybus TD - FlexRay Trigger and Decode Option
- HDO4022 - HDO4K-EMB - I2C, SPI and UART Trigger and Decode Option
- HDO4022 - HDO4K-I2Cbus TD - I2C Bus Trigger and Decode Option
- HDO4022 - HDO4K-LINbus TD - LIN Trigger and Decode Option
- HDO4022 - HDO4K-Manchesterbus D - Manchester Decode Option
- HDO4022 - HDO4K-1553 TD - MIL-STD-1553 Trigger and Decode Option
- HDO4022 - HDO4K-NRZbus D - NRZ Decode Option
- HDO4022 - HDO4K-SENTbus D - SENT Decode Option
- HDO4022 - HDO4K-SPIbus TD - SPI Bus Trigger and Decode Option
- HDO4022 - HDO4K-SpaceWirebus D - SpaceWire Decode Option
- HDO4022 - HDO4K-UART-RS232bus TD - UART and RS-232 Trigger and Decode Option
- HDO4022 - HDO4K-USB2bus TD - USB 2.0 Trigger and Decode Option
- HDO4022 - HDO4K-USB2-HSICbus D - USB2-HSIC Decode Option
| Model | HDO4022 |
|---|

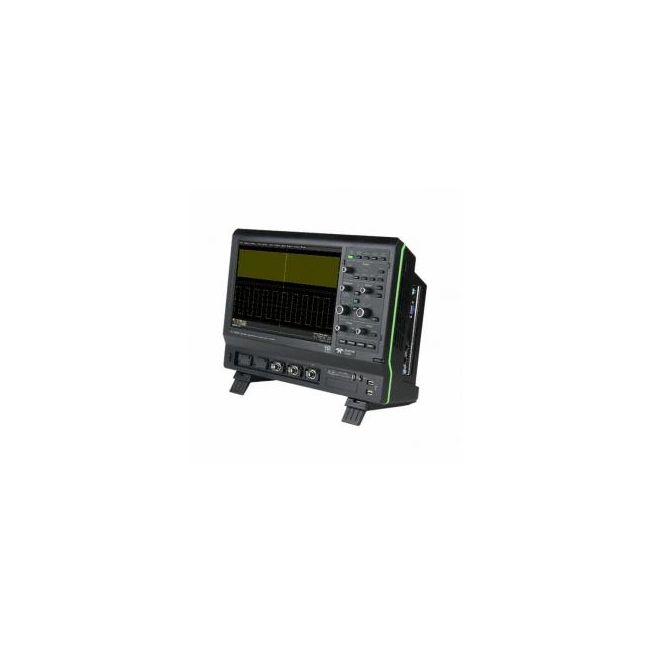

The Teledyne LeCroy HDO4022 High Definition Oscilloscope offers a 200 MHz analog bandwidth with 2 high-precision channels, delivering exceptional 12-bit HD4096 resolution at 2.5 GS/s per channel. It features a generous 12.5 Mpts/channel memory depth and a bright 12.1″ WXGA capacitive touch display for intuitive operation. Advanced tools such as WaveScan, History Mode, LabNotebook, serial data trigger/decoding, and power analysis enhance detailed signal inspection and measurement accuracy.
Designed for engineers requiring precise waveform analysis, the HDO4022 excels in high-resolution signal capture, fault detection, and embedded system debugging across a variety of applications.
Testwall can supply the used Teledyne LeCroy HDO4022, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy HDO4022.
