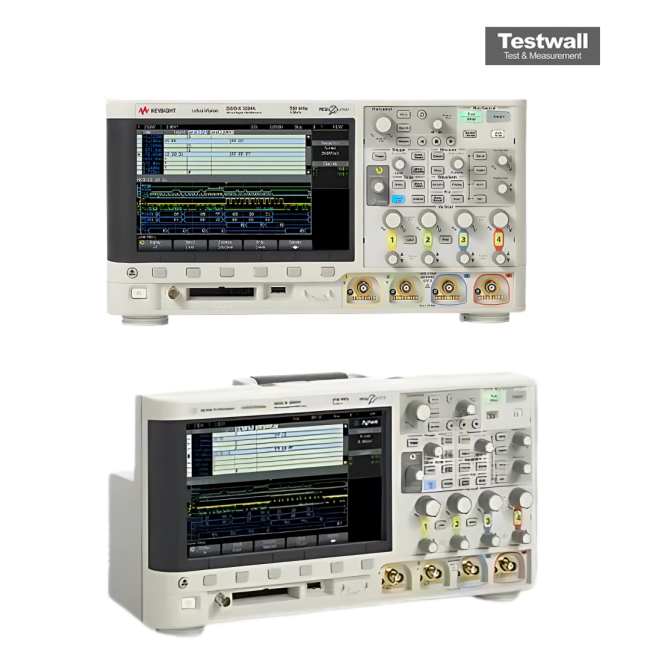

Keysight (Agilent) DSOX3034A
4 Ch 350 MHz Oscilloscope
4 Analog Channels Number of Channels
350 MHz Bandwidth
4 GSa/s Sample Rate
4 Mpts Standard (up to 4 Mpts per channel) Memory Depth
8.5-inch WVGA (800 x 480) Color Display Display
| Attribute | Value |
|---|---|
| Number of Channels | 4 Analog Channels |
| Bandwidth | 350 MHz |
| Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts Standard (up to 4 Mpts per channel) |
| Display | 8.5-inch WVGA (800 x 480) Color Display |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Timebase Range | 2 ns/div to 50 s/div |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Connectivity | USB Host, USB Device, LAN (LXI Core 2011), and optional GPIB |
Keysight Technologies DSOX3034A Options:
- DSOX3034A - DSOX3MSO - Upgrade to 16 digital timing channels (MSO)
- DSOX3034A - DSOX3MEMUP - Memory upgrade to 4 Mpts half-channel
- DSOX3034A - DSOX3WAVEGEN - WaveGen built-in 20 MHz function generator
- DSOX3034A - DSOX3MASK - Mask limit testing application
- DSOX3034A - DSOX3SGM - Segmented memory application
- DSOX3034A - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSOX3034A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- DSOX3034A - DSOX3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- DSOX3034A - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- DSOX3034A - DSOX3BW34 - Bandwidth upgrade from 200 MHz to 350 MHz on 4 channel models
- DSOX3034A - DSOX3BW54 - Bandwidth upgrade from 350 MHz to 500 MHz on 4 channel models
- DSOX3034A - DSOXEDK - Educator's Oscilloscope Training Kit
- DSOX3034A - U1881A - Power measurement and analysis
- DSOX3034A - B4610A - PC offline viewing
- DSOX3034A - DSOXLAN - LAN/VGA connection module
- DSOX3034A - DSOXGPIB - GPIB connection module
| Model | DSOX3034A |
|---|
The Keysight (Agilent) DSOX3034A oscilloscope provides 350 MHz bandwidth, 4 analog channels, 4 GSa/s sampling, and a 2/4 Mpts memory depth. Features include 5-in-1 instrument design, MegaZoom IV, and a large 8.5” WVGA display.
Fully upgradeable, supporting waveform generator, voltmeter, and segmented memory.
Testwall can supply the used Keysight (Agilent) DSOX3034A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX3034A.
