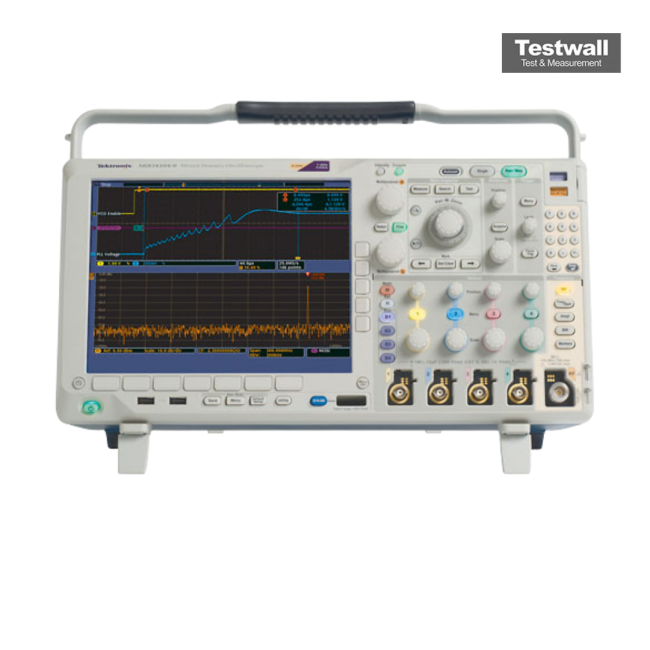

Tektronix MDO4014-3
3 Mixed Domain Oscilloscope, 4 analog, 16 digital, 1 RF channel, 100 MHz
100 MHz Bandwidth
4 Number of Analog Channels
2.5 GS/s Sample Rate
10 M points Record Length
9 kHz to 3 GHz RF Frequency Range
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Analog Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 10 M points |
| RF Frequency Range | 9 kHz to 3 GHz |
| Vertical Resolution | 8 bits |
| Number of Digital Channels | 16 |
| Display | 9 inch WVGA (800 x 480) TFT color display |
| Waveform Capture Rate | 280,000 waveforms per second |
| Connectivity | USB 2.0 Host, USB 2.0 Device, LAN (RJ-45), Auxiliary Output |
Tektronix MDO4014-3 Options:
- MDO4014-3 - A0 - North America power plug (115 V, 60 Hz)
- MDO4014-3 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO4014-3 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO4014-3 - A3 - Australia power plug (240 V, 50 Hz)
- MDO4014-3 - A5 - Switzerland power plug (220 V, 50 Hz)
- MDO4014-3 - A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- MDO4014-3 - A10 - China power plug (50 Hz)
- MDO4014-3 - A11 - India power plug (50 Hz)
- MDO4014-3 - A12 - Brazil power plug (60 Hz)
- MDO4014-3 - A99 - No power cord
- MDO4014-3 - L0 - English manual
- MDO4014-3 - L1 - French manual
- MDO4014-3 - L2 - Italian manual
- MDO4014-3 - L3 - German manual
- MDO4014-3 - L4 - Spanish manual
- MDO4014-3 - L5 - Japanese manual
- MDO4014-3 - L6 - Portuguese manual
- MDO4014-3 - L7 - Simplified Chinese manual
- MDO4014-3 - L8 - Traditional Chinese manual
- MDO4014-3 - L9 - Korean manual
- MDO4014-3 - L10 - Russian manual
- MDO4014-3 - L99 - No manual
- MDO4014-3 - C3 - Calibration Service 3 Years
- MDO4014-3 - C5 - Calibration Service 5 Years
- MDO4014-3 - D1 - Calibration Data Report
- MDO4014-3 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO4014-3 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO4014-3 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MDO4014-3 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MDO4014-3 - R5 - Repair Service 5 Years (including warranty)
- MDO4014-3 - SILV900 - Standard warranty extended to 5 years
- MDO4014-3 - DPO4AERO - Aerospace Serial Triggering and Analysis Module (MIL-STD-1553)
- MDO4014-3 - DPO4AUDIO - Audio Serial Triggering and Analysis Module (I2S, LJ, RJ, TDM)
- MDO4014-3 - DPO4AUTO - Automotive Serial Triggering and Analysis Module (CAN, LIN)
- MDO4014-3 - DPO4AUTOMAX - Extended Automotive Serial Triggering and Analysis Module (CAN, LIN, FlexRay)
- MDO4014-3 - DPO4COMP - Computer Serial Triggering and Analysis Module (RS-232/422/485/UART)
- MDO4014-3 - DPO4EMBD - Embedded Serial Triggering and Analysis Module (I2C, SPI)
- MDO4014-3 - DPO4ENET - Ethernet Serial Triggering and Analysis Module (10BASE-T, 100BASE-TX)
- MDO4014-3 - DPO4USB - USB Serial Triggering and Analysis Module (low-speed, full-speed, high-speed)
- MDO4014-3 - DPO4PWR - Power Analysis Application Module
- MDO4014-3 - DPO4LMT - Limit and Mask Testing Application Module
- MDO4014-3 - DPO4VID - HDTV and Custom (nonstandard) Video Triggering Module
- MDO4014-3 - MDO4TRIG - Advanced RF Power Level Triggering Module
| Model | MDO4014-3 |
|---|
The Tektronix MDO4014-3 combines a robust oscilloscope with expandable features like logic channels, function generator, protocol analysis, and a true hardware spectrum analyzer up to 6 GHz for advanced mixed-signal and RF debugging.
Offers >125 trigger combinations, 20 M record length, and accurate time/frequency domain analysis using actual acquisition data to ensure the highest measurement fidelity.
Testwall can supply the used Tektronix MDO4014-3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4014-3.
