Keysight (Agilent) DSOX3052A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 |
| Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts standard (up to 8 Mpts with memory upgrade) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch display |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 50 s/div |
| Waveform Update Rate | up to 1,000,000 waveforms per second |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
Keysight (Agilent) DSOX3052A Options:
- DSOX3052A - DSOX3MEMUP - Memory upgrade (standard 2 Mpts to 4 Mpts)
- DSOX3052A - DSOX3SGM - Segmented memory
- DSOX3052A - DSOX3MSO - MSO upgrade: add 16 digital timing channels (for 500 MHz and below models)
- DSOX3052A - DSOX3WAVEGEN - WaveGen built-in 20 MHz function/arbitrary waveform generator
- DSOX3052A - DSOXDVM - Integrated 3-digit digital voltmeter (DVM)
- DSOX3052A - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSOX3052A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- DSOX3052A - DSOX3AUTO - Automotive serial triggering and analysis (CAN/LIN)
- DSOX3052A - DSOX3FLEX - FlexRay serial triggering and analysis
- DSOX3052A - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- DSOX3052A - DSOX3AERO - Aerospace serial triggering and analysis (MIL-STD 1553 and ARINC 429)
- DSOX3052A - DSOX3PWR - Power measurements and analysis application
- DSOX3052A - DSOX3MASK - Mask/limit testing
- DSOX3052A - DSOX3VID - Enhanced video/TV triggering and analysis application package
- DSOX3052A - DSOX3ADVMATH - Advanced waveform math
- DSOX3052A - DSOXEDK - Educator's oscilloscope training kit
- DSOX3052A - DSOX3BW54 - License-only bandwidth upgrade: 350 MHz to 500 MHz, 4 ch
- DSOX3052A - DSOX3BW12 - Return-to-Keysight service center bandwidth upgrade: 500 MHz to 1 GHz, 2 ch
- DSOX3052A - DSOXLAN - LAN/VGA connection module
- DSOX3052A - DSOXGPIB - GPIB connection module
| Model | DSOX3052A |
|---|

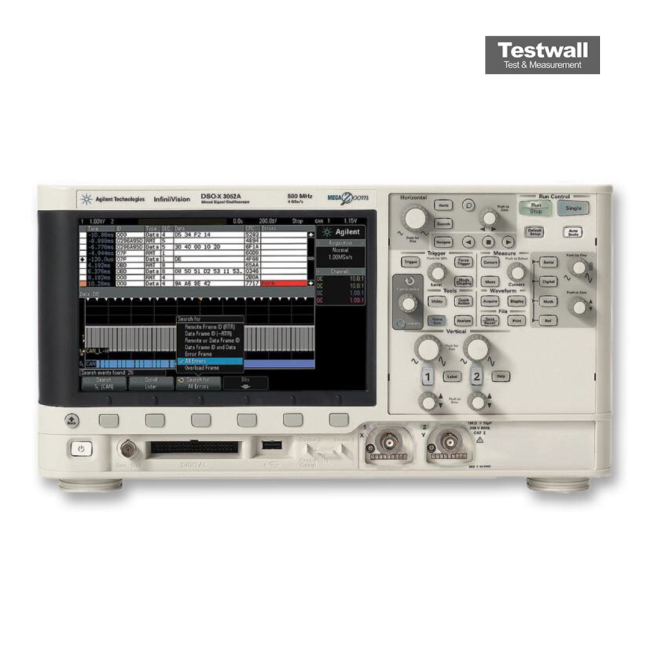

The Keysight DSOX3052A (Agilent) Oscilloscope features a 500 MHz bandwidth, 4 GSa/s maximum sample rate, and a large 8.5‑inch WVGA display. It includes 2 analog channels, 16 digital inputs, upgradable memory, and integrated tools like a 20 MHz function/arbitrary waveform generator, digital voltmeter, and protocol analyzer.
Designed for precise signal analysis, it leverages MegaZoom IV smart memory, segmented capture, real‑time averaging for up to 12‑bit effective resolution, and supports selectable thresholds over a wide voltage range.
Testwall can supply the used Keysight DSOX3052A Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight DSOX3052A Oscilloscope.
