Keysight (Agilent) DSOX4032A
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Channels | 2 Analog Channels |
| Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts Standard (up to 16 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 500 s/div |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Connectivity & Interface | USB, LAN (LXI Core), GPIB (optional), USB Device Port for PC control |
Keysight (Agilent) DSOX4032A Options:
- DSOX4032A - DSOX4EMBD - Embedded serial triggering and decode (I²C, SPI)
- DSOX4032A - DSOX4COMP - Computer serial triggering and decode (RS232/UART)
- DSOX4032A - DSOX4USBFL - USB 2.0 Full/Low Speed serial triggering and decode
- DSOX4032A - DSOX4AUTO - Automotive serial triggering and decode (CAN/CAN-dbc/LIN)
- DSOX4032A - DSOX4FLEX - FlexRay serial triggering and decode
- DSOX4032A - DSOX4AUDIO - Audio serial triggering and decode (I²S)
- DSOX4032A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553, ARINC 429)
- DSOX4032A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- DSOX4032A - DSOXDVM - 3-digit voltmeter (DVM)
- DSOX4032A - DSOX4PWR - Power analysis application
- DSOX4032A - DSOX4MASK - Mask limit testing
- DSOX4032A - DSOX4VID - Enhanced video/TV application package
- DSOX4032A - DSOX4FPGAX - FPGA dynamic probe option for Xilinx
- DSOX4032A - DSOXEDK - Education training kit
- DSOX4032A - DSOXPERFMSO - 4000 X-Series oscilloscope MSO upgrade (16 digital channels)
- DSOX4032A - DSOX4B3T52U - Bandwidth upgrade 350 MHz to 500 MHz, 2 ch (License Only)
| Model | DSOX4032A |
|---|

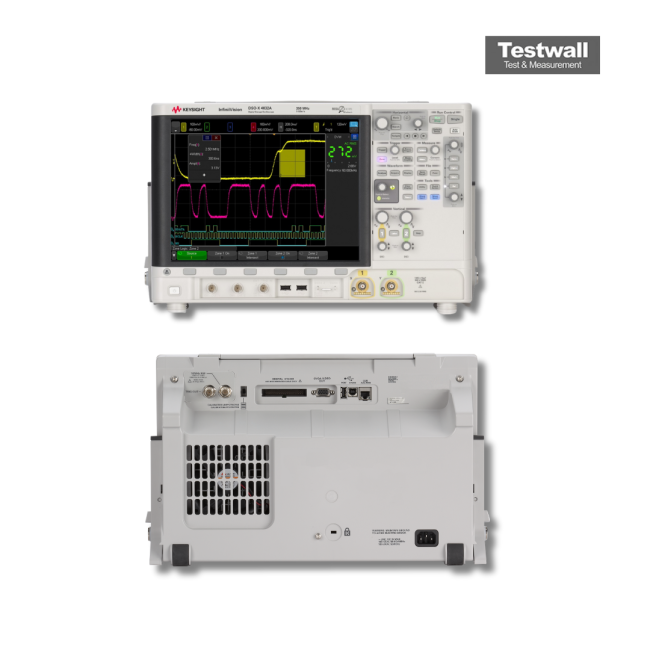

The Keysight (Agilent) DSOX4032A Oscilloscope is a 2-channel, 350 MHz unit with a 5 GSa/s sample rate and 12.1-inch capacitive touch display, offering InfiniiScan Zone triggering and MegaZoom IV memory. It features 5-in-1 instrument integration including oscilloscope, logic analyzer, serial protocol analyzer, function generator, and digital voltmeter.
Ideal for advanced signal analysis, this oscilloscope offers high-speed waveform capture, up to 4 Mpts memory, and broad input voltage range with selectable impedance for versatile measurement needs.
Testwall can supply the used Keysight (Agilent) DSOX4032A Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX4032A Oscilloscope.
