Tektronix TDS7154
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 GS/s (on 2 channels), 10 GS/s (on 4 channels) |
| Record Length | Up to 32 M points (with optional memory upgrade) |
| Vertical Resolution | 8 bits |
| Rise Time | 233 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 10.4-inch color LCD touchscreen |
| Operating System | Windows 2000 |
| Connectivity | GPIB, RS-232, Ethernet (10/100Base-T), USB |
Tektronix TDS7154 4 Channel 1.5GHz DPO Scope Options:
- TDS7154 - 2M - 8 Msamples Max, 2 Msamples Per Channel
- TDS7154 - 3M - 16 Msamples Max, 4 Msamples Per Channel
- TDS7154 - 4M - 32 Msamples Max, 8 Msamples Per Channel
- TDS7154 - CP2 - Telecom Pulse Complaince Testing Software
- TDS7154 - DVD - Dvd Optical Storage Analysis
- TDS7154 - ET2 - Ethernet Compliance Test Software
- TDS7154 - J1 - Jitter Analysis Software
- TDS7154 - J2 - Disk Drive Analysis Software
- TDS7154 - JT3 - Advanced Jitter Analysis Software
- TDS7154 - PW2 - Power Measurement & Analysis Software
- TDS7154 - SM - Serial Communications Mask Testing
- TDS7154 - ST - Serial Pattern Trigger
| Model | TDS7154 |
|---|

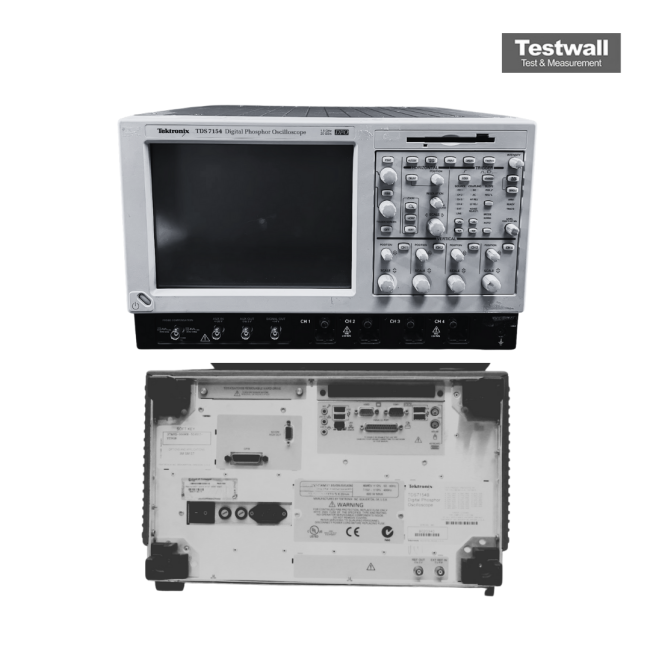

The Tektronix TDS7154 4-Channel 1.5GHz Digital Phosphor Oscilloscope delivers exceptional signal acquisition and analysis, with up to 20 GS/s sample rates and 32M memory depth for precise event capture. Featuring the TekConnect™ signal interface, it ensures unmatched signal fidelity and compatibility with P7000 series probes.
Ideal for high-speed logic, multi-Gigabit communications, and advanced jitter/timing analysis, it offers deep memory, versatile triggering, and superior probing capabilities for complex electronic design validation.
Testwall can supply the used Tektronix TDS7154, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS7154.
