Keysight (Agilent) DSOX4054A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 8 Mpts with memory upgrade) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen display |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 20 s/div |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 3 pF, or 50 Ω ± 1.5% |
Keysight (Agilent) DSOX4054A Options:
- DSOX4054A - DSOX4EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX4054A - DSOX4COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX4054A - DSOX4USBFL - USB 2.0 Full/Low Speed serial triggering and decode
- DSOX4054A - DSOX4USBH - USB 2.0 Hi-Speed serial triggering and decode (1 GHz and 1.5 GHz models only)
- DSOX4054A - DSOX4AUTO - Automotive serial triggering and decode (CAN/CAN-dbc/LIN)
- DSOX4054A - DSOX4FLEX - FlexRay serial triggering and decode
- DSOX4054A - DSOX4AUDIO - Audio serial triggering and decode (I²S)
- DSOX4054A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553, ARINC 429)
- DSOX4054A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- DSOX4054A - DSOXDVM - 3-digit voltmeter (DVM)
- DSOX4054A - DSOX4PWR - Power analysis application
- DSOX4054A - DSOX4MASK - Mask limit testing
- DSOX4054A - DSOX4VID - Enhanced video/TV application package
- DSOX4054A - DSOX4FPGAX - FPGA dynamic probe option for Xilinx
- DSOX4054A - DSOX4USBSQ - USB 2.0 signal quality test option
- DSOX4054A - DSOXEDK - Education training kit
- DSOX4054A - DSOXPERFMSO - 4000 X-Series oscilloscope MSO upgrade (16 digital channels)
- DSOX4054A - DSOX4B5T104U - 500 MHz to 1 GHz bandwidth upgrade, 4 ch (Service center)
- DSOX4054A - DSOX4B5T154U - 500 MHz to 1.5 GHz bandwidth upgrade, 4 ch (Service center)
| Model | DSOX4054A |
|---|

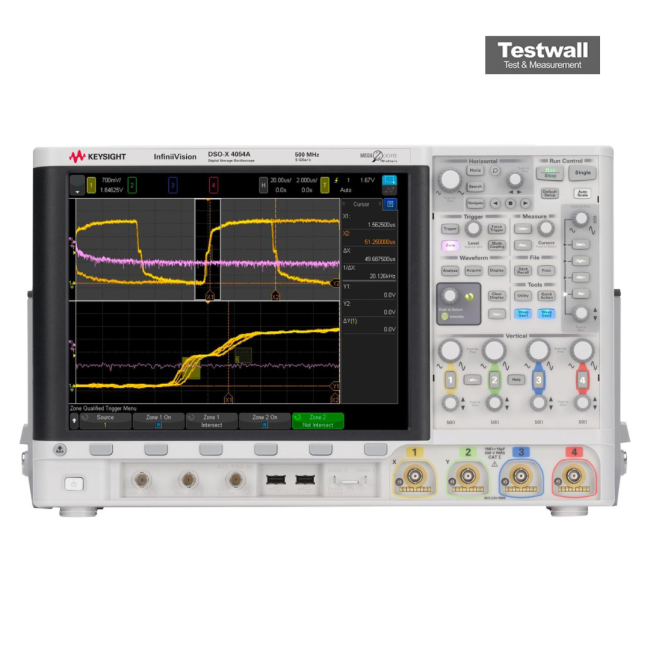

The Keysight (Agilent) DSOX4054A is a 4-channel, 500 MHz oscilloscope offering 5-in-1 functionality including a logic analyzer, protocol analyzer, arbitrary waveform generator, and digital voltmeter. It features a 12.1-inch capacitive touchscreen, MegaZoom IV technology, segmented memory, and over 1 million waveforms/sec update rate.
Ideal for high-speed signal analysis, this model supports a 5 GSa/s sampling rate, 4 Mpts memory, and extensive trigger options, including InfiniiScan Zone touch triggering.
Testwall can supply the used Keysight (Agilent) DSOX4054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX4054A
