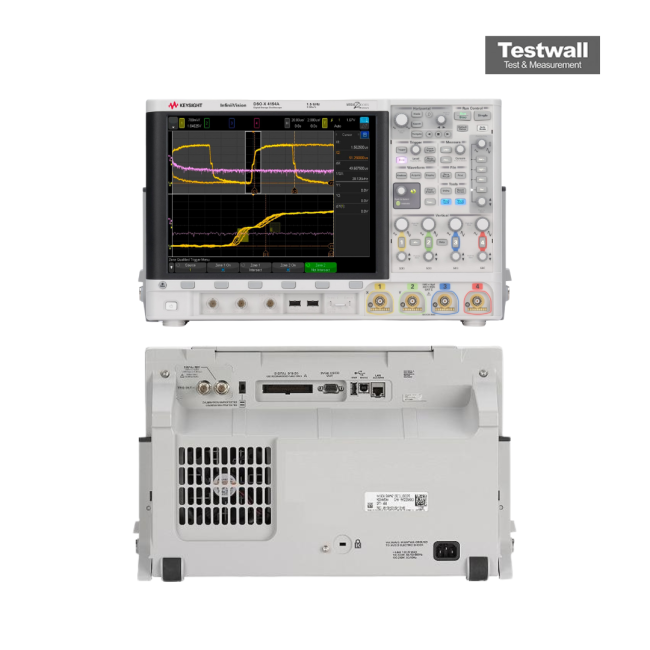

Keysight (Agilent) DSOX4154A
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 16 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 1 ns/div to 50 s/div |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Connectivity | USB, LAN (LXI), GPIB (optional), USB Device Port |
Keysight (Agilent) DSOX4154A Options:
- DSOX4154A - DSOX4EMBD - Embedded serial triggering and decode (I²C, SPI)
- DSOX4154A - DSOX4COMP - Computer serial triggering and decode (RS232/UART)
- DSOX4154A - DSOX4USBFL - USB 2.0 Full/Low Speed serial triggering and decode
- DSOX4154A - DSOX4USBH - USB 2.0 Hi-Speed serial triggering and decode
- DSOX4154A - DSOX4AUTO - Automotive serial triggering and decode (CAN/CAN-dbc/LIN)
- DSOX4154A - DSOX4FLEX - FlexRay serial triggering and decode
- DSOX4154A - DSOX4AUDIO - Audio serial triggering and decode (I²S)
- DSOX4154A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553, ARINC 429)
- DSOX4154A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- DSOX4154A - DSOXDVM - 3-digit voltmeter (DVM)
- DSOX4154A - DSOX4PWR - Power analysis application
- DSOX4154A - DSOX4MASK - Mask limit testing
- DSOX4154A - DSOX4VID - Enhanced video/TV application package
- DSOX4154A - DSOX4FPGAX - FPGA dynamic probe option for Xilinx
- DSOX4154A - DSOX4USBSQ - USB 2.0 signal quality test option
- DSOX4154A - DSOXEDK - Education training kit
- DSOX4154A - DSOXPERFMSO - 4000 X-Series oscilloscope MSO upgrade (16 digital channels)
- DSOX4154A - DSOX4B1T154U - 1 GHz to 1.5 GHz bandwidth upgrade, 4 ch (Service center)
| Model | DSOX4154A |
|---|
The Keysight (Agilent) DSOX4154A is a four-channel oscilloscope from the InfiniiVision 4000 X-Series, featuring a high-resolution 12.1-inch capacitive touch screen and innovative InfiniiScan Zone triggering. With 1.5 GHz bandwidth, 5 GSa/s sample rate, and MegaZoom IV memory, it delivers over one million waveforms per second, supporting analog and digital channels with segmented memory, MSO, serial protocol analyzer, WaveGen, and digital voltmeter functionality.
Ideal for mixed-signal design and analysis, the DSOX4154A offers flexible upgrades, precision measurement with 8-bit resolution (up to 12 bits with averaging), and robust connectivity including USB, LAN, and video out ports.
Testwall can supply the used Keysight (Agilent) DSOX4154A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX4154A.
