Keysight (Agilent) E1413C
| Attribute | Value |
|---|---|
| Number of Channels | 64 Channels |
| Input Type | Single-ended or Differential Analog Input |
| Resolution | 16-bit |
| Sampling Rate | Up to 100,000 samples per second (100 kSa/s) |
| Input Voltage Range | ±5V, ±10V, 0 to 10V (programmable ranges) |
| Form Factor / Bus Interface | VXI C-Size Module (VMEbus eXtensions for Instrumentation) |
| Trigger Modes | Software, External TTL, and VXI Backplane Trigger |
| Signal Conditioning | Built-in programmable gain amplifier and multiplexer |
| Operating Temperature Range | 0°C to 55°C |
| Programming Interface | SCPI (Standard Commands for Programmable Instruments) compatible |
Keysight Technologies E1413C Options:
- E1413C - 0B3 - Service manual
- E1413C - A3F - Interface to rack mount terminal panel
- E1413C - W01 - 3 yr, retn, to Agilent to 1 yr, OnSite warr.
- E1413-80011 - Extra Terminal Block
- E1413-80013 - Term Blk A3F HI 50-pin Conn
| Model | E1413C |
|---|

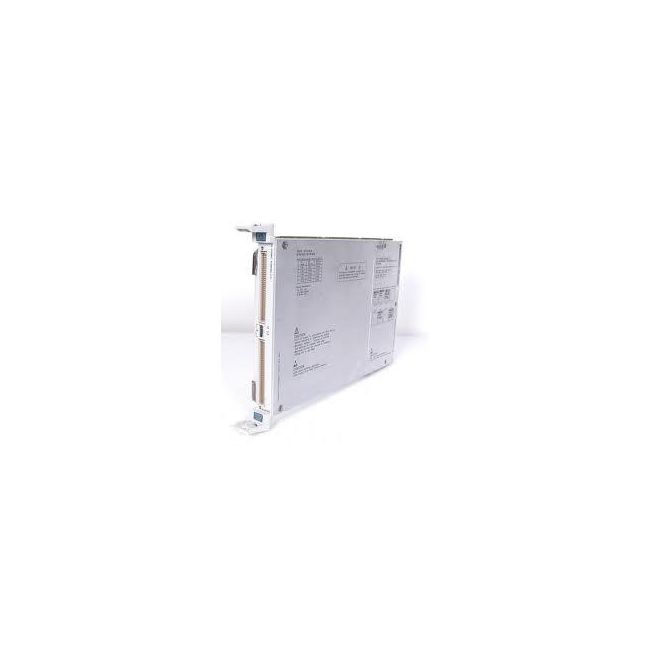

The Keysight (Agilent) E1413C is a high-performance 64-channel scanning A/D converter in a C-size, 1-slot VXI format. It features 16-bit resolution, 0.01% reading accuracy, and a voltage range from 4 mV to 16 V (expandable to 60 V with the E1513A attenuator). It includes a 64 kSa dual-ported FIFO buffer and a current value buffer for fast, reliable data transfers and online monitoring.
Ideal for data acquisition and computer-aided testing, it offers automatic self-calibration and rapid scanning capability, making it essential for precision measurement tasks in advanced electronic systems.
Testwall can supply the used Keysight (Agilent) E1413C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1413C.
