Keysight (Agilent) E4206A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1.8 GHz |
| Output Power Range | -136 dBm to +13 dBm |
| Frequency Resolution | 1 Hz |
| Modulation Types | AM, FM, Phase, Pulse |
| SSB Phase Noise | -115 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Harmonic Spurious | -30 dBc typical |
| Output Impedance | 50 Ohm |
| Interface | GPIB (IEEE 488.2), RS-232 |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) E4206A Options:
- E4206A - W01 - 1-year on-site warranty (converts standard 3-year return-to-Agilent warranty)
- E4207A - - V-Interface Frame Processor
- E4216A - - B-ISDN Frame Relay Test Software
- E4209B - - 0-155 Mb/s Cell Protocol Processor (CPP)
- E4200B - - BSTS Form-7 Transportable Chassis
- E4210B - - BSTS Form-13 Mainframe Chassis
- E4118A - #008 - RJ-48 M/M/F T Monitor Cable
- E4118A - #010 - Bantam M/M/F T Monitor Cable
- E4118A - #015 - DB-15/RJ-48/DB-15 M/M/F T Monitor Cable Jpn
- E4118A - #101 - RJ-48/DB-9/DB-9 M/F/M T Monitor Cable
- E4118A - #102 - Mini Bantam/BNC T Monitor Cable
- E4118A - #104 - RJ-48 to RJ-48 (Japan) M/F Adaptor Cable (Japanese pinout, female RJ-48 connector only)
- E4213B - - B-ISDN DXI Test Software
- E6275A - - B-ISDN FUNI Test Software
| Model | E4206A |
|---|

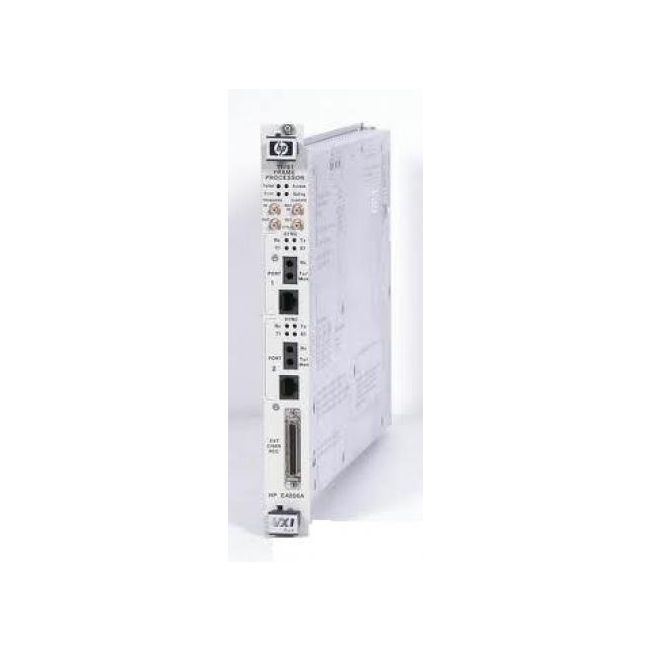

The Keysight (Agilent) E4206A T1/E1 Frame Processor is a powerful module supporting frame-based protocols at speeds up to 2 Mb/s. It features dual ports, internal RISC-based engines for real-time monitoring, traffic generation, and framing error simulation. Offers flexible support for channelized, unchannelized, and fractional operations.
Ideal for telecom testing, it allows channel mapping from 1 to 30 timeslots (E1) or 1 to 24 (T1), plus subrate selection from 8Kb/s to 64Kb/s using advanced hyperchannel schemes.
Testwall can supply the used Keysight (Agilent) E4206A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E4206A.
