Keysight (Agilent) E1432A
| Attribute | Value |
|---|---|
| Number of Input Channels | 16 Channels |
| Sample Rate | Up to 51.2 kSa/s per channel |
| Frequency Range | DC to 20 kHz |
| Dynamic Range | 90 dB |
| ADC Resolution | 24-bit |
| Input Voltage Range | ±10 V peak |
| Anti-Aliasing Filter | Automatic tracking anti-aliasing filter |
| Bus Interface | VXI (VME eXtensions for Instrumentation), C-Size module |
| Input Impedance | 1 MΩ in parallel with 100 pF |
| Trigger Sources | Internal, External, VXI backplane TTL trigger lines |
Keysight Technologies E1432A Options:
- E1432A - AYF - Optional Dual Tachometer Input
- E1432A - 1D4 - Optional Arbitrary Source (single channel, 16-bit, 65 kSa/sec)
- E1432A - UGV - Local Bus Option
| Model | E1432A |
|---|

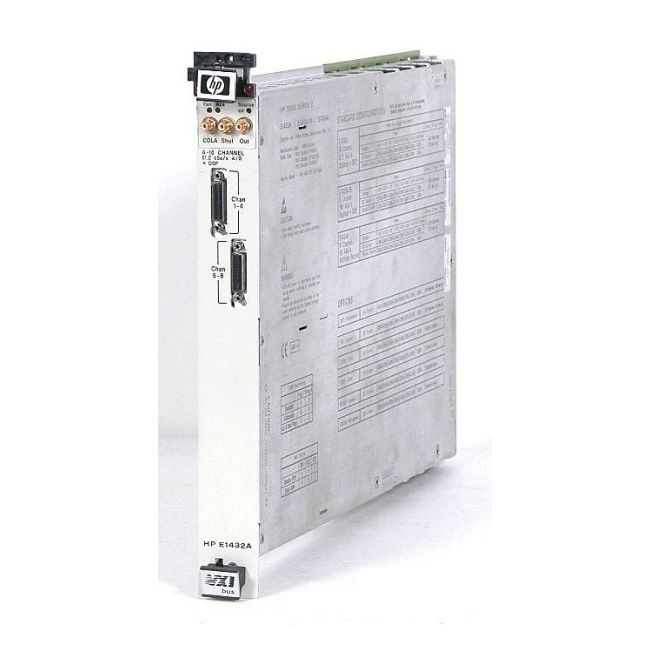

The Keysight (Agilent) E1432A is a 16-channel, 51.2 kSa/s digitizer plus DSP housed in a C-size, single-slot VXI module. It supports up to four 4-channel input assemblies, providing a total of 16 inputs. This module integrates transducer signal conditioning, anti-alias protection, digitization, and high-speed measurement computation, all within a compact form factor. Onboard digital signal processing and up to 32 MB of RAM maximize system performance and flexibility.
Designed for high-speed data acquisition and complex measurement applications, the E1432A offers robust signal analysis capabilities, making it ideal for various testing environments.
Testwall can supply the used Keysight (Agilent) E1432A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1432A.
