Keysight (Agilent) E8462A
30 Hz to 2 MHz Frequency Range
C-D, C-R, C-G, L-Q, L-R, R-X, Z-θ, G-B, Y-θ Measurement Parameters
0.1% Basic Accuracy
5 mV to 1 Vrms Test Signal Level (Voltage)
200 µA to 20 mArms Test Signal Level (Current)
| Attribute | Value |
|---|---|
| Frequency Range | 30 Hz to 2 MHz |
| Measurement Parameters | C-D, C-R, C-G, L-Q, L-R, R-X, Z-θ, G-B, Y-θ |
| Basic Accuracy | 0.1% |
| Test Signal Level (Voltage) | 5 mV to 1 Vrms |
| Test Signal Level (Current) | 200 µA to 20 mArms |
| DC Bias Voltage | 0 to ±40 V |
| DC Bias Current | 0 to ±100 mA |
| Impedance Range | 1 mΩ to 100 MΩ |
| Interface | GPIB (IEEE-488) |
| Power Requirements | 100/120/220/240 VAC, 47 to 66 Hz |
| Model | E8462A |
|---|

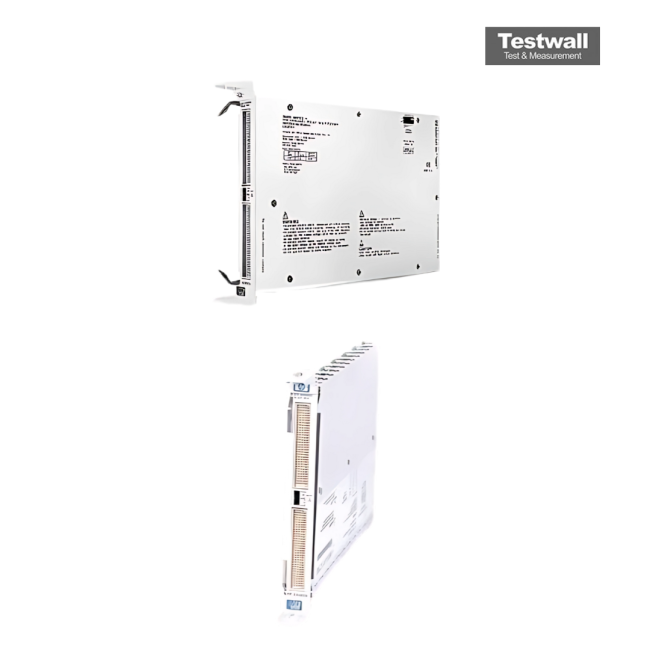

The Keysight (Agilent) E8462A is a C-size, 1-slot VXI module featuring a 256-channel high-density relay multiplexer. It utilizes non-latching armature relays, enabling fast, reconfigurable switching ideal for automated test environments.
Designed for complex test systems, this module offers high point-count switching topology and rapid switching performance within a compact footprint.
Testwall can supply the used Keysight (Agilent) E8462A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8462A.
