Keysight (Agilent) E1433B
| Attribute | Value |
|---|---|
| Number of Input Channels | 8 |
| Sampling Rate | Up to 51.2 kSa/s per channel |
| Frequency Range | DC to 20 kHz |
| Dynamic Range | 90 dB |
| Input Voltage Range | ±10 V peak |
| Resolution | 16-bit ADC |
| Anti-Aliasing Filter | Built-in digital anti-aliasing filter |
| Form Factor / Interface | VXI (VME eXtensions for Instrumentation) C-size module |
| Input Coupling | AC/DC selectable per channel |
| Trigger Modes | Internal, external, and software triggering supported |
Keysight Technologies E1433B Options:
- E1433B - AYF - Optional Dual Tachometer Input
- E1433B - 1D4 - Optional Arbitrary Source (single channel, 16-bit, 65 kSample/sec)
- E1433B - 1D1 - Real-time 1/1 or 1/3 Octave Measurements
- E1433B - UGV - Local Bus Option
| Model | E1433B |
|---|

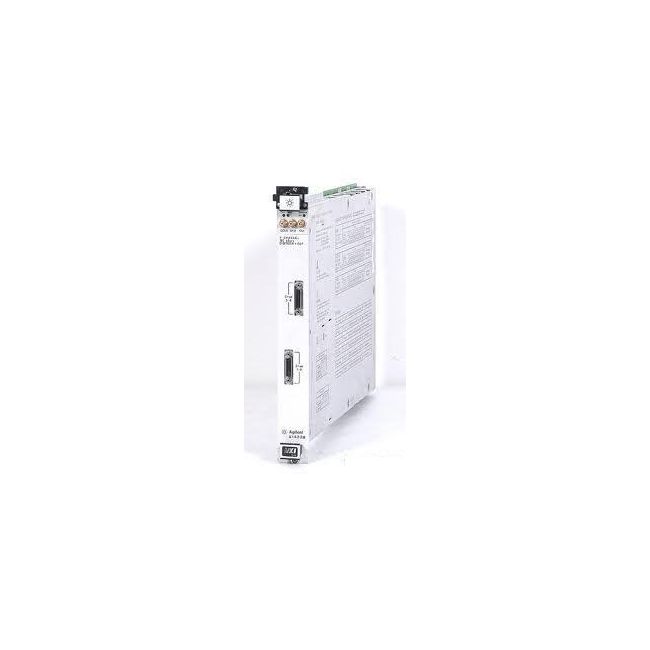

The Keysight (Agilent) E1433B is an 8-channel, 196 kSa/s Digitizer plus DSP in a 1-slot, C-size VXI module. It supports up to eight inputs via dual four-channel assemblies, offering transducer signal conditioning, anti-alias protection, and 32 MB of onboard RAM for advanced signal processing and measurement capabilities.
Designed for high-speed, accurate data acquisition, it features integrated signal conditioning and high-performance DSP functions ideal for dynamic signal analysis.
Testwall can supply the used Keysight (Agilent) E1433B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1433B.
