Keysight (Agilent) E1442A
| Attribute | Value |
|---|---|
| Form Factor | VXI Module (C-Size) |
| Number of Channels | 64 Channels |
| Switch Type | Multiplexer (MUX) |
| Configuration | 64 x 1 Single-Ended or 32 x 1 Differential |
| Relay Type | Reed Relays |
| Maximum Voltage | 300 V DC / 250 V AC (RMS) |
| Maximum Current | 1 A per Channel |
| Maximum Switching Frequency | 10 MHz |
| Interface/Bus | VXIbus (MXI Compatible) |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies E1442A Options:
- E1442A - 010 - Form C Switch, QUIC interface, solder terminal block with pull-up/pull-down resistor dividers
- E1442A - 020 - Form A Switch, QUIC interface, screw terminal block
- E1442A - 106 - Same as standard E1442A except replaces QUIC interface with "old style" terminal block and front panel
- E1442A - 116 - Same as E1442A Option 010 except replaces QUIC interface with "old style" terminal block and front panel
- E1442A - 126 - Same as E1442A Option 020 except replaces QUIC interface with "old style" terminal block and front panel
- E1442A - 0B3 - Service Manual
| Model | E1442A |
|---|

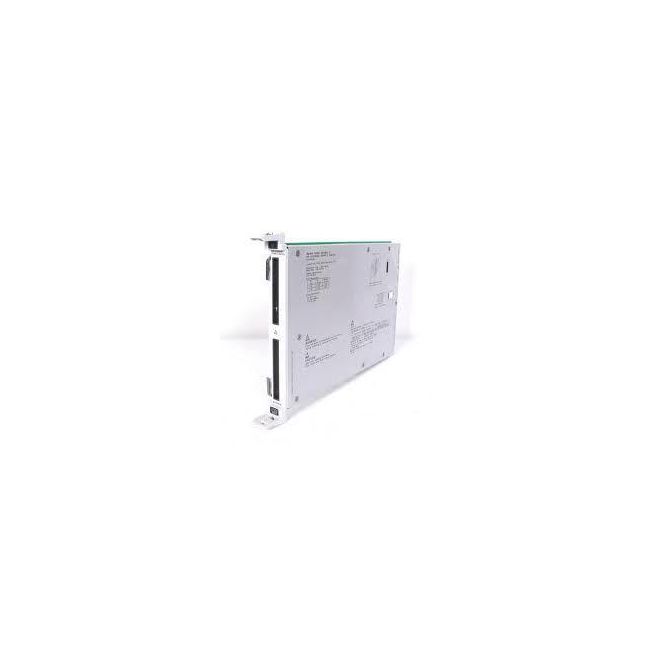

The Keysight (Agilent) E1442A is a 64-Channel General-Purpose Switch VXI module with non-latching Form C relays, offering a 1-slot, C-size, register-based design. It includes a component card with 64 Form C relays and removable terminal blocks with solder lugs or screw terminal options for versatile connectivity.
This module allows flexible signal routing, device actuation, and external switching via three internal buses and component integration like fuses or resistors per relay.
Testwall can supply the used Keysight (Agilent) E1442A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1442A.
