Keysight (Agilent) E1458A
| Attribute | Value |
|---|---|
| Form Factor | VXI C-Size Module |
| Number of Channels | 96 Channels |
| Channel Configuration | 96 x 1 (96 SPST Switches) |
| Switch Type | Relay-Based Switching (Reed Relays) |
| Maximum Voltage | 60 VDC / 40 VAC RMS |
| Maximum Current | 1 A per Channel |
| Maximum Power | 10 W per Channel |
| Contact Resistance | 150 mΩ Maximum |
| Interface/Bus | VXIbus (VMEbus-based) |
| Operating Temperature Range | 0°C to 55°C |
| Model | E1458A |
|---|

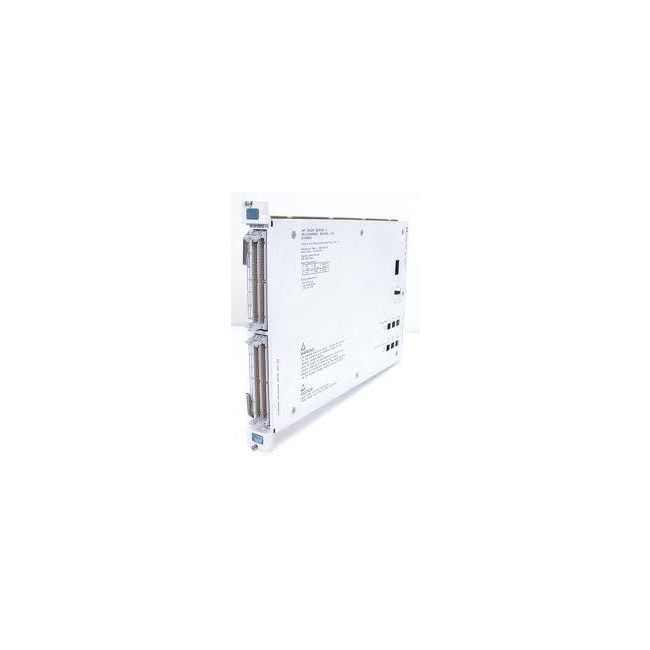

The Keysight (Agilent) E1458A 96-Channel Digital Input/Output module is a C-size, 1-slot, register-based VXI unit featuring twelve 8-bit bi-directional data ports, enabling block memory transfers and six advanced GPIO handshake protocols. Each 8-bit port supports positive/negative logic, read/write, or tri-state, and ports can be combined for byte to long word transmission.
Ideal for digital I/O control and data acquisition, the module supports port-level readback, tri-state driver control, and flexible interface configurations across twelve ports arranged in three banks.
Testwall can supply the used Keysight (Agilent) E1458A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1458A.
