Tektronix TVS641A
| Attribute | Value |
|---|---|
| Number of Channels | 4 Analog Channels |
| Bandwidth | 500 MHz |
| Sample Rate | 2.5 GS/s |
| Record Length | 50,000 Points per Channel |
| Vertical Resolution | 8-bit |
| Input Impedance | 1 MΩ or 50 Ω |
| Time Base Range | 200 ps/div to 40 s/div |
| Display Type | Color LCD Display |
| Connectivity | GPIB, RS-232, Centronics |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Tektronix TVS641A Options:
- TVS641A - C3 - Three years of Calibration Services
- TVS641A - C5 - Five years of Calibration Services
- TVS641A - D3 - Test Data for Opt. C3
- TVS641A - D5 - Test Data for Opt. C5
- TVS641A - R5 - Repair warranty extended to cover five years
| Model | TVS641A |
|---|

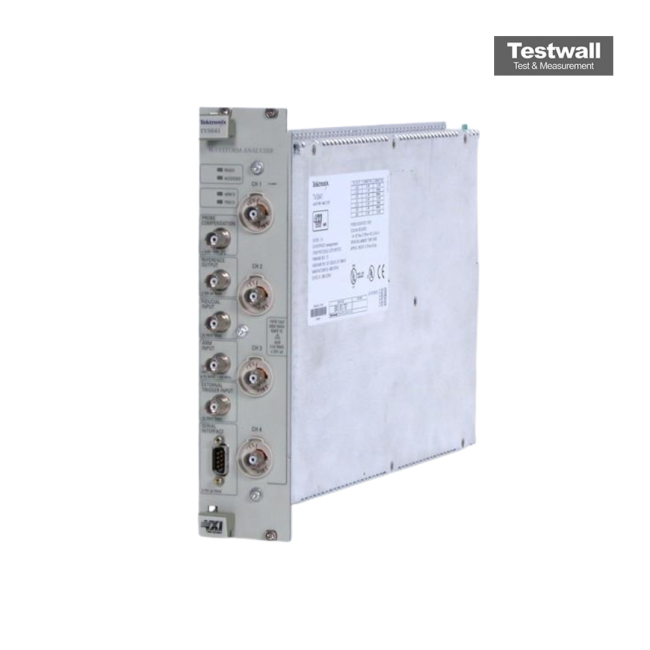

The Tektronix TVS641A is a 4-channel, 250MHz, 1GS/s VXI Waveform Analyzer built for mixed signal testing and high-speed data acquisition. It features real-time sampling with 200ps/point intervals, Auto-Advance, Envelope, and Average acquisition modes, plus internal triggering options including Main, Delayed, Edge, and Pulse.
Designed for demanding VXI system applications, it supports fast rearm with Auto-Advance, SCPI command sets, and offers extensive analysis capabilities with rapid waveform calculations and flexible triggering sources.
Testwall can supply the used Tektronix TVS641A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TVS641A.
