Keysight (Agilent) E1686A
| Attribute | Value |
|---|---|
| Form Factor | VXI Module |
| Module Size | C-Size VXI |
| Interface Type | VXIbus |
| Function | Digitizer / Waveform Acquisition Module |
| Number of Channels | 4 Channels |
| Sample Rate | Up to 2 GSa/s |
| Bandwidth | 500 MHz |
| Vertical Resolution | 8-bit |
| Input Impedance | 50 Ohm |
| Memory Depth | Up to 256 KSa per channel |
| Model | E1686A |
|---|

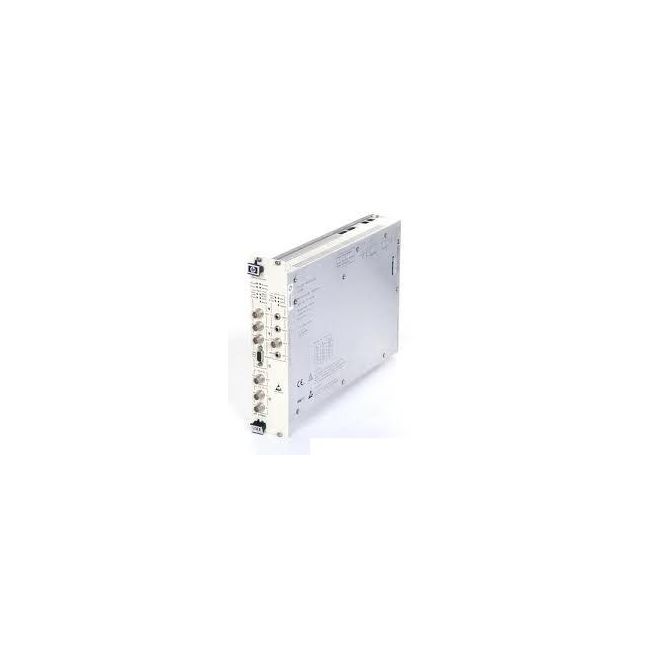

The Keysight (Agilent) E1686A is a dual-slot VXI module that handles DS3 and DS1/E1 signal transmission and reception independently. It supports DS3 channelization, DS1 within DS3 sourcing/measurement, and basic DS2/E1 functionalities. Integrated features include LED indicators, multiple clock and trigger connectors, and support for alarms and error payload detection.
This module is suited for complex telecom signal testing, pattern recognition, and error diagnostics using embedded DS1/E1 in DS3 environments.
Testwall can supply the used Keysight (Agilent) E1686A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1686A.
