Keysight (Agilent) E4205A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1 GHz |
| Output Power | -127 dBm to +13 dBm |
| Frequency Resolution | 1 Hz |
| Signal Type | Analog Signal Generator |
| Amplitude Accuracy | ±1.0 dB |
| Phase Noise | -116 dBc/Hz at 20 kHz offset (at 1 GHz) |
| Modulation Types | AM, FM, Phase Modulation (ΦM), Pulse Modulation |
| Output Impedance | 50 Ohm |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Interface/Connectivity | GPIB (IEEE-488), RS-232 |
| Model | E4205A |
|---|

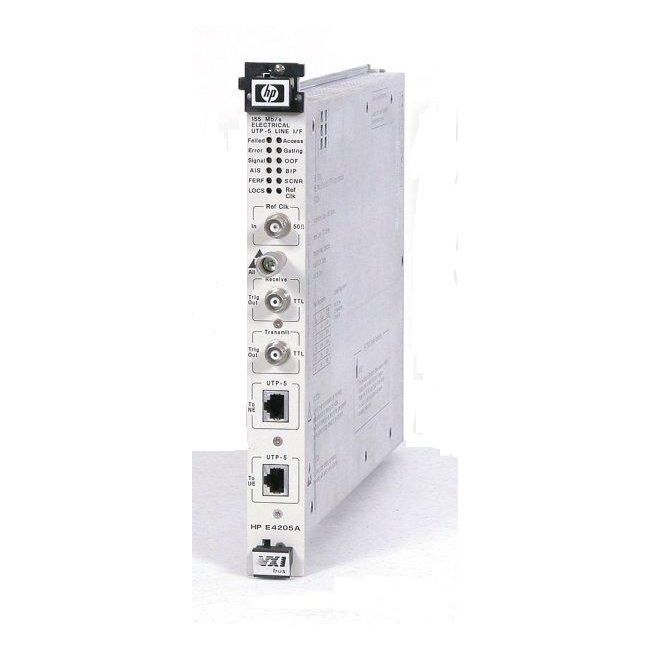

The Keysight (Agilent) E4205A is a C-size, single-slot VXI module tailored for use with the E4200/E4210 Broadband Series Test System. It enables ATM cell stream generation and analysis within SONET or SDH framing at 155 Mb/s. It supports both cell-based and framed modes, with UNI and NNI interface options, and includes an internal traffic generator with 1 foreground and up to 100 background channels.
Designed with Terminal, Repeater, and Local Loopback modes, the E4205A is a robust tool for testing at both physical and ATM cell layers. It ensures comprehensive test capabilities and compatibility with existing BSTS setups.
Testwall can supply the used Keysight (Agilent) E4205A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E4205A.
