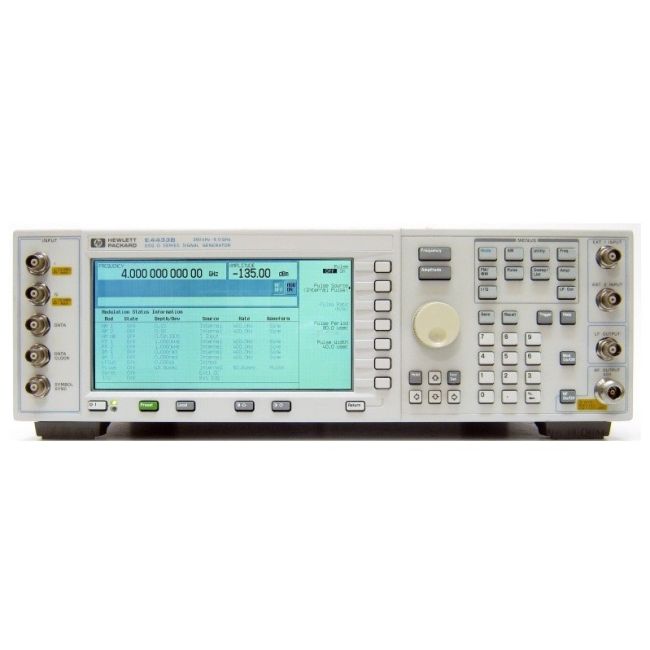

Keysight (Agilent) E4433B
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 4 GHz |
| Frequency Resolution | 0.01 Hz |
| Switching Speed | < 50 ms (typ.) |
| RF Output Connector | Type-N female, front panel |
| Interfaces | GPIB, RS-232 |
| Output Power | -136 to +7 dBm |
| SSB Phase Noise | -116 dBc/Hz at 1 GHz, 20 kHz offset (typ.) |
| Modulation | AM, FM, ΦM, pulse, I/Q, wideband AM |
| Level Accuracy | ±0.5 dB (spec.), ±0.9 dB above 2 GHz (spec.) at +7 to -120 dBm |
| Harmonics | < -30 dBc at ≤ +4 dBm |
| Sweep Modes | step sweep, list mode (2 to 401 points) |
| Timebase Aging | < ±1 ppm per year |
| Dimensions | 426 × 133 × 432 mm |
| Weight | < 13.5 kg |
Keysight Technologies E4433B Options:
- E4433B - 0B1 - Adds extra manual set
- E4433B - 0BV - Adds service documentation, component level
- E4433B - 0BW - Adds service documentation, assembly level
- E4433B - 0BX - Adds service documentation, assembly and component level
- E4433B - 1CM - Adds rack mount kit, part number 5063-9214
- E4433B - 1CN - Adds front handle kit, part number 5063-9227
- E4433B - 1CP - Adds rack mount kit with handles, part number 5063-9221
- E4433B - 1E5 - Adds high-stability timebase
- E4433B - 1EM - Moves all front panel connectors to rear panel
- E4433B - UN5 - Adds multichannel IS-95 CDMA personality
- E4433B - UN7 - Adds internal bit-error-rate analyzer
- E4433B - UN8 - Adds real-time I/Q baseband generator with TDMA standards and 1 Mbit of RAM
- E4433B - UN9 - Adds 7 Mbits of RAM to Option UN8
- E4433B - 100 - Adds multichannel W-CDMA personality
- E4433B - 101 - Adds multichannel cdma2000 personality
- E4433B - 200 - Adds real-time 3GPP W-CDMA personality
- E4433B - 201 - Adds real-time cdma2000 personality
- E4433B - 202 - EDGE personality for Real-Time BB generator
- E4433B - 300 - Base station BERT extension for Option UN7 (internal bit-error-rate analyzer)
- E4433B - 404 - Signal Studio for 1xEV-DO
- E4433B - 406 - Signal Studio for Bluetooth
- E4433B - UNA - Alternate timeslot power level control
- E4433B - UNB - Adds higher power with mechanical attenuator
- E4433B - UND - Adds internal dual arbitrary waveform generator
- E4433B - H99 - Improves ACP performance for TETRA, CDMA, and W-CDMA
The Keysight (Agilent) E4433B ESG Signal Generator operates from 250 kHz to 4 GHz, delivering an RF modulation bandwidth up to 35 MHz. It features a 40 MHz sample rate with 14-bit I/Q resolution and supports waveform playback/storage with 1 Msample (4 MB) memory. Options include dual arbitrary waveform and real-time I/Q baseband generators.
Supports complex digital modulation schemes including >15 FSK, MSK, PSK, and QAM types, plus AM, FM, phase, pulse modulation, and step/list sweep. Suitable for advanced communication test setups.
Testwall can supply the used Keysight (Agilent) E4433B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E4433B.
Options and configurations
- Output Power: -136 to +7 dBm (+13 dBm with Opt. UNB; -4 dB with Opt. 1E6)
- Modulation: AM, FM, ΦM, pulse, I/Q, wideband AM; digital formats with Opt. UN8
- Harmonics: < -30 dBc at ≤ +4 dBm (+7.5 dBm with Opt. UNB)
- Timebase Aging: < ±1 ppm per year (< ±0.1 ppm per year with Opt. 1E5)
