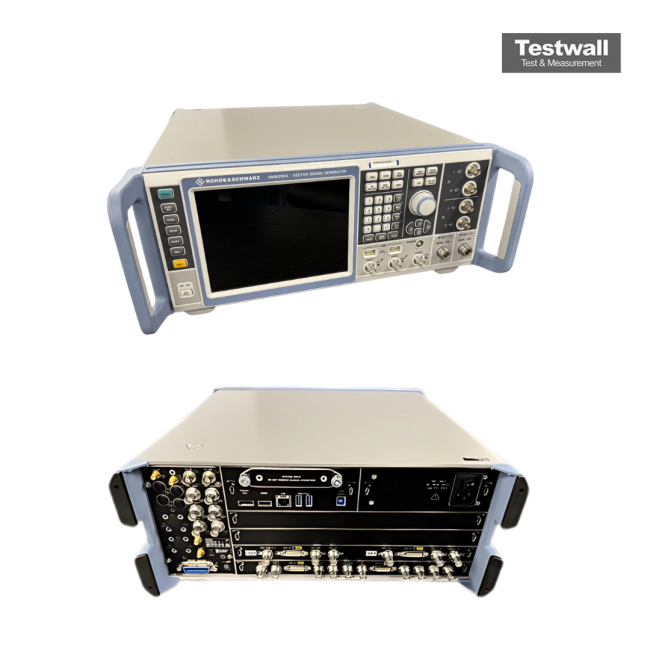

Rohde & Schwarz SMU200A-B106-B203
6 GHz/3 GHz, 2-Channel Vector Signal Generator
100 kHz to 6 GHz (Opt. B106) Frequency Range
0.01 Hz Frequency Resolution
< -30 dBc (level < 8 dBm) Harmonics
GPIB, LAN, USB Interfaces
color, 800 × 600 Display
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6 GHz (Opt. B106) |
| Frequency Resolution | 0.01 Hz |
| Harmonics | < -30 dBc (level < 8 dBm) |
| Interfaces | GPIB, LAN, USB |
| Display | color, 800 × 600 |
| Output Power | -145 to +13 dBm (PEP, ≤ 3 GHz), +11 dBm (> 3 GHz); +19/+17 dBm with Opt. B31/B36 |
| SSB Phase Noise | < -131 dBc/Hz at 1 GHz, 20 kHz offset (-135 typ.); < -136 dBc/Hz with Opt. B22 (-139 typ.) |
| Modulation | AM, FM, ΦM (Opt. B20/B22), I/Q, pulse, AWGN |
| Level Accuracy | < 0.5 dB (1 MHz to 3 GHz), < 0.9 dB (> 3 GHz) |
| Non-Harmonics | < -77 dBc (0.3 to 200 MHz), < -90 dBc (200 to 1500 MHz), < -84 dBc (1.5 to 3 GHz) |
| Switching Speed | < 2 ms (1.5 ms typ.); < 450 µs list mode |
| Modulation Bandwidth | 200 MHz RF bandwidth (external I/Q), 40 MHz internal baseband |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 1 × 10⁻⁷ per year, 1 × 10⁻⁹ per day |
| Dimensions | 435 × 192 × 460 mm |
| Weight | 25 kg |
The Rohde & Schwarz SMU200A offers two RF channels with frequency options up to 6 GHz, featuring low phase noise (–135 dBc at 1 GHz), and output levels from –145 dBm to +13 dBm. It supports FM, IQ, and digital modulation.
With modular configuration, it includes dual baseband generators, real-time signal processing, and 64 Msample memory, ideal for R&D and production of modern communication systems.
Testwall can supply the used Rohde & Schwarz SMU200A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMU200A.
