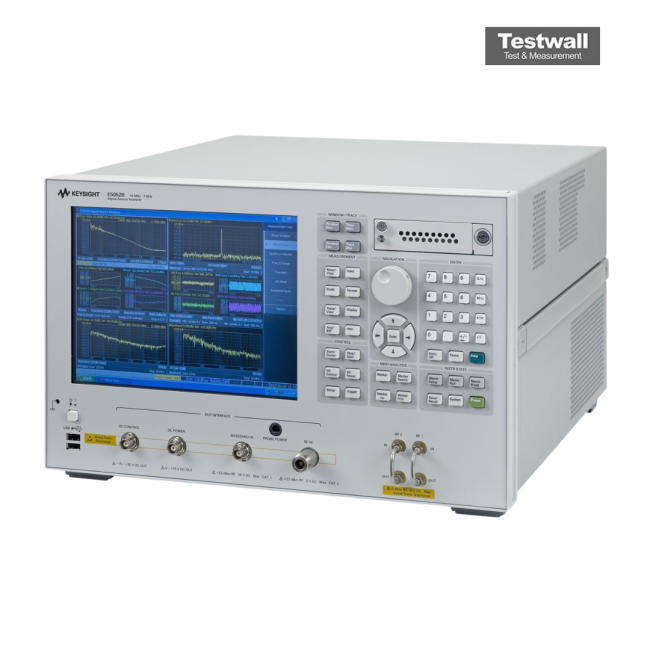

Keysight (Agilent) E5052B
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 7 GHz |
| Phase Noise Measurement Range | -180 dBc/Hz (noise floor) to +30 dBm input |
| Residual Phase Noise Floor | -183 dBc/Hz at 10 kHz offset (at 1 GHz carrier) |
| Input Power Range | -20 dBm to +30 dBm |
| Offset Frequency Range | 1 Hz to 100 MHz |
| Frequency Measurement Accuracy | ±1 ppm (with internal reference) |
| Transient Measurement Capability | Frequency, phase, and power vs. time measurements supported |
| Reference Input/Output | 10 MHz external reference input and output (BNC connector) |
| Display | 10.4-inch color LCD touchscreen display |
| Interface/Connectivity | GPIB, USB, and LAN (LXI compliant) |
| Model | E5052B |
|---|
The Keysight (Agilent) E5052B Signal Source Analyzer operates from 10 MHz to 7 GHz, extendable to 110 GHz with the E5053A and 11970 series mixers. It offers ultra-low noise floor phase noise measurement, AM/baseband noise analysis, and real-time spectrum monitoring with high-speed capture up to 4.8 GHz. Ideal for VCOs, RF/mmW oscillators, SerDes chips, and ADC/DAC modules.
This analyzer supports transient measurements, jitter analysis with femto-second resolution, and video trigger functions, ensuring precise frequency, phase, and power evaluations across numerous advanced applications.
Testwall can supply the used Keysight (Agilent) E5052B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5052B.
