Keysight (Agilent)

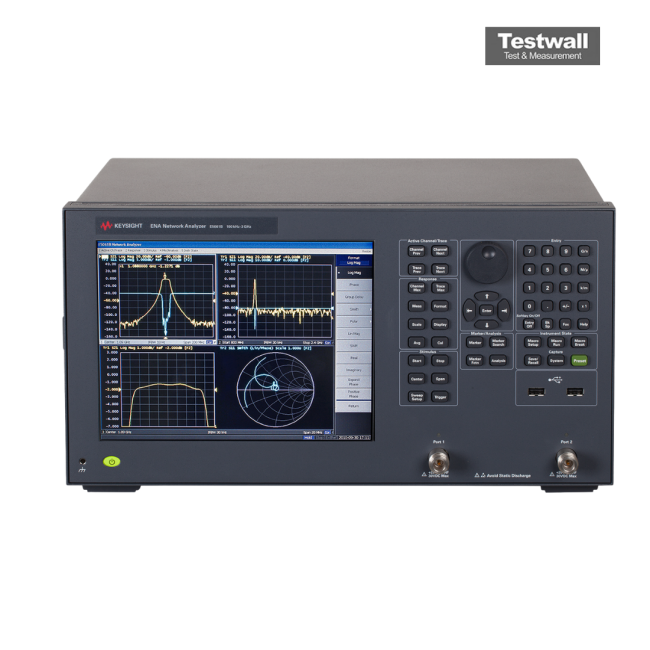

Keysight (Agilent) E5061B
ENA Series Network Analyzer 5Hz - 3GHz
5 Hz to 3 GHz Frequency Range
2-port network analyzer Number of Ports
Up to 140 dB Dynamic Range
-55 dBm to +10 dBm Output Power Range
S-parameters (S11, S21, S12, S22), impedance, admittance, group delay Measurement Parameters
| Attribute | Value |
|---|---|
| Frequency Range | 5 Hz to 3 GHz |
| Number of Ports | 2-port network analyzer |
| Dynamic Range | Up to 140 dB |
| Output Power Range | -55 dBm to +10 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, group delay |
| IF Bandwidth | 10 Hz to 100 kHz |
| Number of Data Points | 2 to 100,001 points per sweep |
| Display | 10.4-inch XGA color LCD touchscreen |
| Impedance Analysis Option | Optional LF-RF impedance analysis capability (1 MHz to 3 GHz) |
| Connectivity and Interface | LAN (LXI compliant), USB, GPIB (optional), internal hard disk drive |
Keysight Technologies E5061B Options:
- E5061B - 1CN - Handle Kit
- E5061B - 1CM - Rack-mount Kit
- E5061B - 1CP - Rack-mount and Handle Kit
- E5061B - 1E5 - High-stability Frequency Standard (BNC Adaptor included)
| Model | E5061B |
|---|
The Keysight (Agilent) E5061B Network Analyzer is designed for versatile electronic component and circuit analysis across a frequency range of 5 Hz to 3 GHz, featuring 2-port S-parameter, 50/75-ohm configurations, and impedance analysis via Options 3L3/3L4/3L5 and 005.
It supports LF-RF NA testing with modular selection for high precision in communications, aerospace, automotive, and more.
Testwall can supply the used Keysight (Agilent) E5061B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5061B.
