Keysight (Agilent) E5070A-314

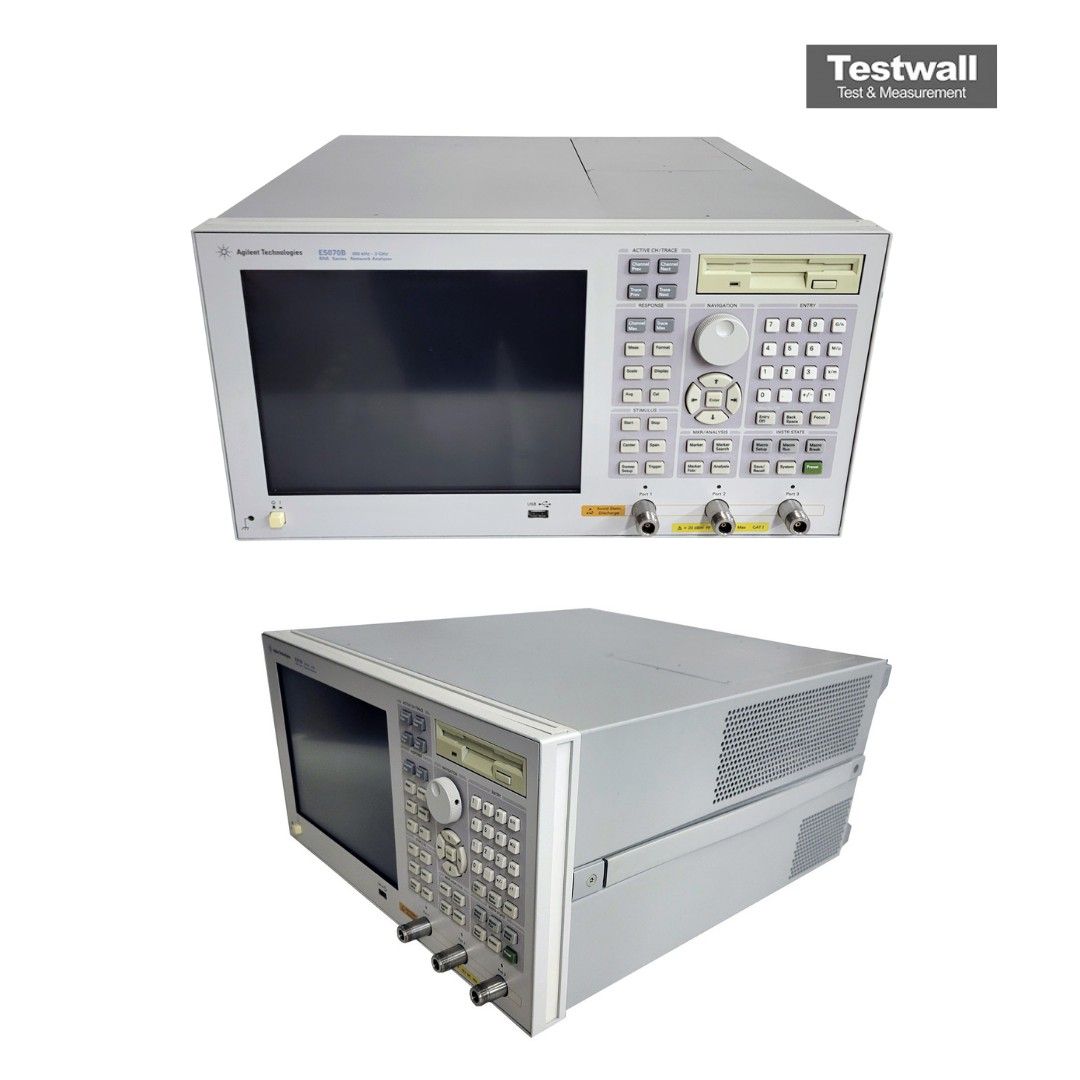

3-port, 300 kHz to 3 GHz ENA Network Analyzer, Option 314 (representative image)
300 kHz to 3 GHz Frequency Range
3 Number of Ports
110 dB (spec.), 125 dB (typ.) Dynamic Range
-50 dBm … 0 dBm Output Power Range
Option 314: full S-parameter test set, extended power range Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 3 |
| Dynamic Range | 110 dB (spec.), 125 dB (typ.) |
| Output Power Range | -50 dBm … 0 dBm |
| Configuration | Option 314: full S-parameter test set, extended power range |
| Impedance | 50 Ω |
| Connector Type | Type-N (f), 50 Ω |
| IF Bandwidth | 10 Hz … 100 kHz |
| Number of Points | max. 1,601 |
| Trace Noise | 0.001 dB rms (typ.) |
| Measurement Parameters | S-parameters, mixed-mode S-parameters |
| Display | 10.4" LCD, 640×480 |
| Interfaces | LAN, USB, GPIB, Handler I/O |
| Series | ENA |
The Keysight (Agilent) E5070A-314 is a 3-port ENA vector network analyzer covering 300 kHz to 3 GHz. Option 314 configuration: full S-parameter test set, extended power range.
Testwall can supply the used Keysight (Agilent) E5070A-314, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5070A-314.
