Keysight (Agilent)
Keysight (Agilent) E5386A
Keysight 16900 Series, 16800 Series Logic Analysis Systems Compatible Logic Analyzers
38-Pin Single-Ended Probe Interface Interface Type
34 Data Channels Number of Channels
Mictor 38-Pin Connector Target Connector Type
Up to 400 MHz State Speed Maximum Input Frequency
| Attribute | Value |
|---|---|
| Compatible Logic Analyzers | Keysight 16900 Series, 16800 Series Logic Analysis Systems |
| Interface Type | 38-Pin Single-Ended Probe Interface |
| Number of Channels | 34 Data Channels |
| Target Connector Type | Mictor 38-Pin Connector |
| Maximum Input Frequency | Up to 400 MHz State Speed |
| Cable Length | 6 inches (approximately 15 cm) probe cable |
| Input Voltage Range | -6V to +6V Maximum Input Voltage |
| Threshold Voltage Range | -6V to +6V Programmable Threshold |
| Application | High-Speed Board-Level Digital Logic Analysis and Debugging |
| Product Form Factor | Soft Touch Probe Adapter / Termination Adapter |
Keysight (Agilent) E5386A Options:
- E5383A - - 17-Channel Single-Ended Flying Lead Probe
- E5404A - - Pro Series Soft Touch Connectorless Probe, 34-channel single-ended, for 40-pin pod connectors
- E5396A - - Half-Size Soft Touch Connectorless Probe, 17-channel single-ended, for 40-pin pod connectors
- E5394A - - Soft Touch Connectorless Probe, 34-channel single-ended, for 40-pin pod connectors
- E5385A - - 100-pin Samtec Connector Probe, 34-channel single-ended, for 40-pin pod connectors
- E5346A - - AMP Mictor 38-pin Probe/Adapter Cable, 34-channel single-ended, for 40-pin pod connectors
- E5339A - - AMP Mictor 38-pin Low Voltage Probe, 34-channel single-ended low voltage, for 40-pin pod connectors
- E5351A - - AMP Mictor 38-pin Probe, 34-channel single-ended no isolation networks, for 40-pin pod connectors
- E5382A - - Flying Lead Probe, 17-channel single-ended, for 90-pin pod connectors
- E5381A - - Flying Lead Probe, 17-channel differential, for 90-pin pod connectors
- E5405A - - Pro Series Soft Touch Connectorless Probe, 17-channel differential, for 90-pin pod connectors
- E5406A - - Pro Series Soft Touch Connectorless Probe, 34-channel single-ended, for 90-pin pod connectors
- E5398A - - Half-Size Soft Touch Connectorless Probe, 17-channel single-ended, for 90-pin pod connectors
- E5390A - - Soft Touch Connectorless Probe, 34-channel single-ended, for 90-pin pod connectors
- E5387A - - Soft Touch Connectorless Probe, 17-channel differential, for 90-pin pod connectors
- E5378A - - Samtec Connector Probe, 34-channel single-ended, for 90-pin pod connectors
- E5379A - - Samtec Connector Probe, 17-channel differential, for 90-pin pod connectors
- E5380A - - Mictor Connector Probe, 34-channel single-ended, for 90-pin pod connectors
- E5403A - - Kit of five retention modules for Pro Series soft touch probes
- E5387-68701 - - Kit of five retention modules for soft touch probes (E5394A)
- E2613A - - Wedge Probe Adapter, 0.5 mm pitch, 3-signal, 1 wedge per pack
- E2613B - - Wedge Probe Adapter, 0.5 mm pitch, 3-signal, 2 wedges per pack
- E2614A - - Wedge Probe Adapter, 0.5 mm pitch, 8-signal, 1 wedge per pack
- E2643A - - Wedge Probe Adapter, 0.5 mm pitch, 16-signal, 1 wedge per pack
- E2615A - - Wedge Probe Adapter, 0.65 mm pitch, 3-signal, 1 wedge per pack
- E2615B - - Wedge Probe Adapter, 0.65 mm pitch, 3-signal, 2 wedges per pack
- E2616A - - Wedge Probe Adapter, 0.65 mm pitch, 8-signal, 1 wedge per pack
- E2644A - - Wedge Probe Adapter, 0.65 mm pitch, 16-signal, 1 wedge per pack
- E5336A - - Elastomeric Probe Adapter, 144-pin TQFP, 0.5 mm pitch
- E5361A - - Elastomeric Probe Adapter, 144-pin PQFP/CQFP, 0.65 mm pitch
- E5373A - - Elastomeric Probe Adapter, 160-pin PQFP/CQFP, 0.65 mm pitch
- E5377A - - Elastomeric Probe Adapter, 160-pin TQFP, 0.5 mm pitch
- E5348A - - Elastomeric Probe Adapter, 176-pin TQFP, 0.5 mm pitch
- E5374A - - Elastomeric Probe Adapter, 208-pin PQFP/CQFP, 0.5 mm pitch
- E5363A - - Elastomeric Probe Adapter, 240-pin PQFP/CQFP, 0.5 mm pitch
- E5340A - - 1/4 Flex Adapter for 144-pin TQFP and 144-pin PQFP/CQFP elastomeric probes
- E5349A - - 1/4 Flex Adapter for 160-pin and 176-pin elastomeric probes
- E5371A - - 1/4 Flex Adapter for 208-pin and 240-pin elastomeric probes
- E5374A - 201 - Kit of five retainers and adhesive for elastomeric probe adapters
- E5374A - 202 - Locator tool for elastomeric probe adapters
- E2421A - - SOIC IC Test Clip Kit (8-pin, 14-pin, 16-pin, 20-pin, 24-pin, 28-pin)
- E2422A - - QUAD IC Test Adapter Kit (20-pin, 28-pin, 44-pin, 52-pin, 66-pin, 84-pin)
- 5090-4833 - - SMD IC Clip with twin hooks, pack of 20
- 10467-68701 - - Twin hook 0.5 mm IC clip, pack of four
- 5959-9333 - - Probe leads, pack of 5
- 5959-9334 - - Short ground leads, pack of 5
- 5959-9335 - - Pod ground leads (long), pack of 5
- 16555-60001 - - Ferrite core assembly for EMI/RFI noise suppression
- 01650-63203 - - Isolation adapter with self-contained isolation networks
| Model | E5386A |
|---|

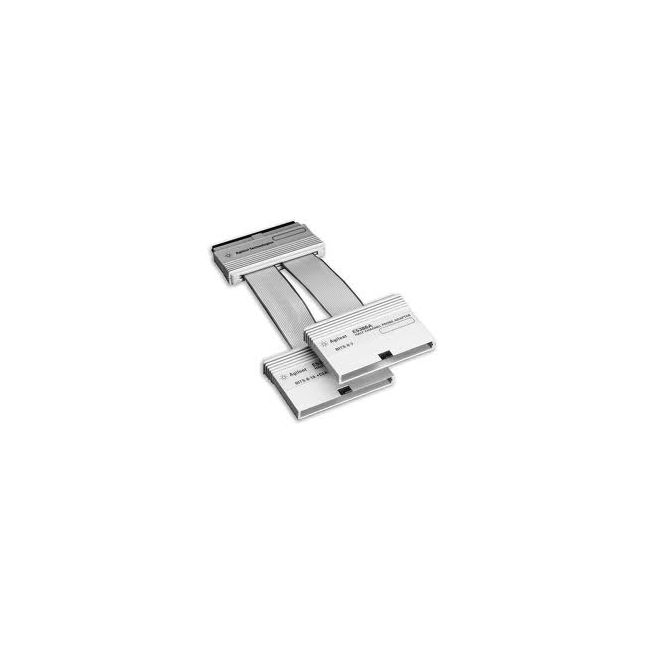

The Keysight (Agilent) E5386A is a half-channel adapter that maps 17 differential signals from a 100-pin Samtec connector to the 16760A logic analyzer module, supporting state speeds up to 1.5 Gb/s.
Ideal for high-speed data acquisition, this adapter ensures optimal signal integrity and seamless integration with the 16760A module in half-channel mode.
Testwall can supply the used Keysight (Agilent) E5386A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5386A.
