Keysight (Agilent) E6006A
| Attribute | Value |
|---|---|
| Frequency Range | 380 MHz to 527 MHz |
| Number of Ports | 4 |
| Output Power Range | -120 dBm to +23 dBm |
| Interface | USB, LAN (LXI Core 2011) |
| Modulation Support | GSM, EDGE, W-CDMA, LTE, CDMA2000 |
| Channel Bandwidth | Up to 20 MHz |
| Operating Temperature | 0°C to 55°C |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Dimensions (W x H x D) | 426 mm x 88 mm x 370 mm |
| Weight | Approximately 9 kg |
Keysight (Agilent) E6006A Options:
- E6000C - 003 - Color screen VGA LCD
- E6000C - 006 - B/W Screen VGA-LCD
- E6000C - AB0 - Traditional Chinese user interface
- E6000C - AB1 - Korean user interface
- E6000C - AB2 - Simplified Chinese user interface
- E6000C - AB8 - Turkish user interface
- E6000C - AB9 - Portuguese user interface
- E6000C - ABD - German user interface
- E6000C - ABE - Spanish user interface
- E6000C - ABF - French user interface
- E6000C - ABJ - Japanese user interface
- E6000C - ABX - Finnish user interface
- E6000C - ABZ - Italian user interface
- E6000C - ACB - Russian (Cyrillic) user interface
- E6000C - AKB - Czech user interface
- E6000C - AKE - Romanian user interface
- E6003A - 021 - 1310/1550 nm standard performance single-mode module with straight connector interface
- E6003A - 022 - 1310/1550 nm standard performance single-mode module with angled connector interface
- E6003B - 021 - 1310/1550 nm high performance single-mode module with straight connector interface
- E6003B - 022 - 1310/1550 nm high performance single-mode module with angled connector interface
- E6003C - 021 - 1310/1550 nm very high performance single-mode module with straight connector interface
- E6003C - 022 - 1310/1550 nm very high performance single-mode module with angled connector interface
- E6004A - 021 - 1310/1550 nm economy single-mode module with straight connector interface
- E6004A - 022 - 1310/1550 nm economy single-mode module with angled connector interface
- E6005A - 021 - 850/1300 nm high performance multimode module
- E6006A - N/A - Optical Power Meter
- E6007A - N/A - Visual Fault Finder
- E6008B - 021 - 1310/1550 nm ultra high performance single-mode module with straight connector interface
- E6008B - 022 - 1310/1550 nm ultra high performance single-mode module with angled connector interface
- E6009A - 021 - 850/1300 nm economy multimode module
- E6012A - 021 - 1550/1625 nm ultra high performance single-mode module with straight connector interface
- E6012A - 022 - 1550/1625 nm ultra high performance single-mode module with angled connector interface
- E6013A - 021 - 1310/1550/1625 nm very high performance single-mode module with straight connector interface
- E6013A - 022 - 1310/1550/1625 nm very high performance single-mode module with angled connector interface
- E6080A - N/A - Spare NiMH battery pack
- E6081A - N/A - Mini-Keyboard
- E6082A - N/A - Hard transit case
- N3980A - N/A - 192 MB CompactFlash card with PCMCIA adapter
- E6092A - N/A - OTDR Toolkit III Plus trace analysis & acceptance test documentation software
- 24542U - N/A - RS232 cable, 9-pin to 9-pin
- E6000-13601 - N/A - OTDR Support CD
- E6000C - R1280A - Return to Agilent Warranty and Service Plan (36 or 60 months)
- E6000C - R1282A - Return to Agilent Calibration Plan (36 or 60 months)
| Model | E6006A |
|---|

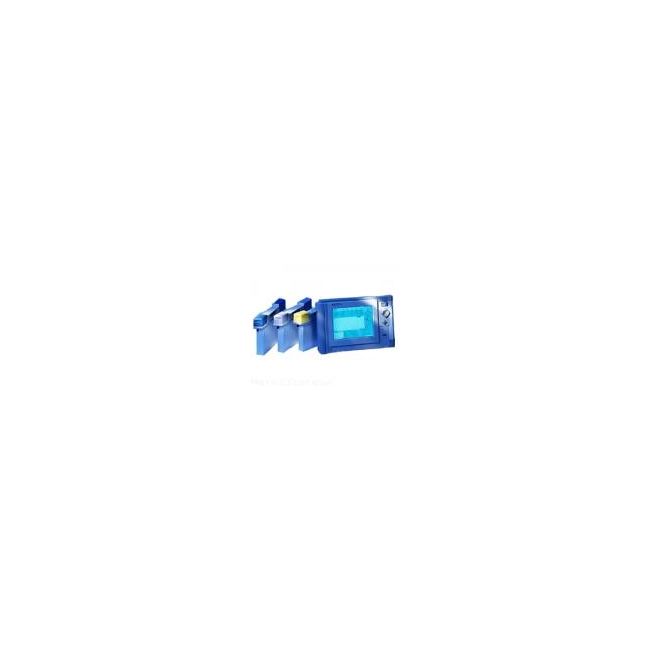

The Keysight (Agilent) E6006A is a plug-in optical power meter designed for seamless integration with the E6000B Mini-OTDR mainframe. It operates across a wide wavelength range from 800 to 1650 nm and measures power levels from +10 to -70 dBm. The unit features automatic zeroing, individual reference memory for each calibrated wavelength, and a high-resolution display with 0.01 dB accuracy.
This module is essential for precision optical testing, allowing accurate measurement of power and loss with simplified operation and dependable performance.
Testwall can supply the used Keysight (Agilent) E6006A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E6006A.
