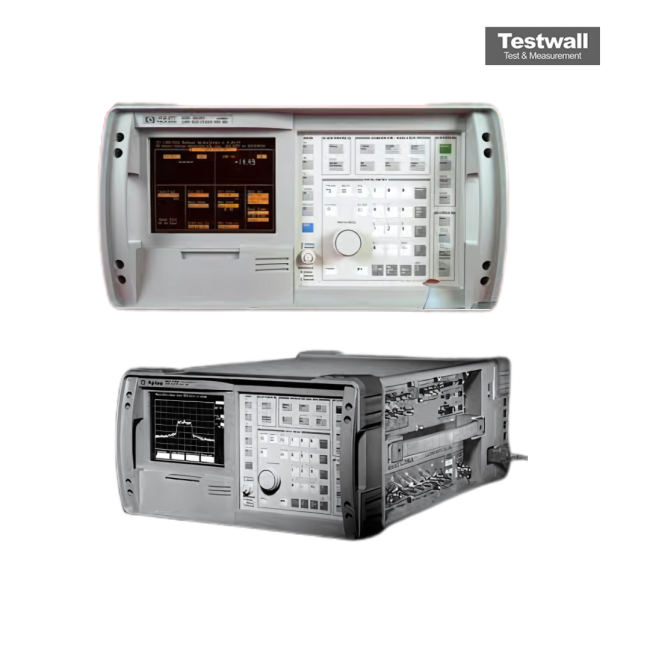

Keysight (Agilent) E6380A
| Attribute | Value |
|---|---|
| Frequency Range | 806 MHz to 870 MHz |
| Channel Bandwidth | 30 kHz (AMPS), 200 kHz (GSM) |
| Measurement Functions | Power, frequency, modulation, spectrum analysis, and call processing |
| Sensitivity | -113 dBm (typical) |
| Dynamic Range | 70 dB |
| RF Output Power Range | -110 dBm to +10 dBm |
| Display Type | Color LCD with touchscreen interface |
| Interface/Connectivity | GPIB, RS-232 |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
Keysight Technologies E6380A Options:
- E6380A - 012 / R12 - Time Offset Precision Calibration (Cal factor accuracy +/- 21 nsec)
- E6380A - 1D5 - High Stability Reference (Oven controlled crystal oscillator)
| Model | E6380A |
|---|
The Keysight (Agilent) E6380A CDMA/cdma2000 1x Base Station Test Set provides rapid RF, TX, and RX measurements, including waveform quality, frequency error, and code domain power. Integrated features such as a calibrated AWGN source and ±7.5% accuracy power meter enable detailed timing and phase analysis with NEM-specific automation software.
Ideal for network deployment and maintenance, this device offers standardized testing, accurate diagnostics, and consistent measurements across all technician levels, reducing downtime and error rates.
Testwall can supply the used Keysight (Agilent) E6380A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E6380A.
