Keysight (Agilent) E7404A
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 26.5 GHz |
| Displayed Average Noise Level (DANL) | -155 dBm (with preamplifier enabled) |
| Phase Noise | -98 dBc/Hz at 10 kHz offset (1 GHz carrier) |
| Resolution Bandwidth (RBW) | 1 Hz to 8 MHz |
| Amplitude Accuracy | ±0.54 dB total amplitude accuracy |
| Dynamic Range | Up to 78 dB third-order intermodulation distortion (TOI) dynamic range |
| Input Attenuator Range | 0 to 70 dB in 2 dB steps |
| Display | 10.4-inch color LCD display with 1024 x 768 resolution |
| Interface/Connectivity | GPIB, LAN (LXI), USB, and RS-232 interfaces |
| Power Requirements | 100–240 VAC, 50/60 Hz, 350 W maximum |
Keysight Technologies E7404A Options:
- E7404A - 1DN - Tracking generator (9 kHz to 3.0 GHz)
- E7404A - BAB - 50 Ω APC 3.5 (m) input connector
- E7404A - 1D6 - Gate trigger sweep option
- E7404A - AYX - Fast sweep times for zero span
- E7404A - A4H - GPIB interface (IEEE-488 bus connector)
- E7404A - 1AX - Serial interface (RS-232, 9-pin D-SUB)
| Model | E7404A |
|---|

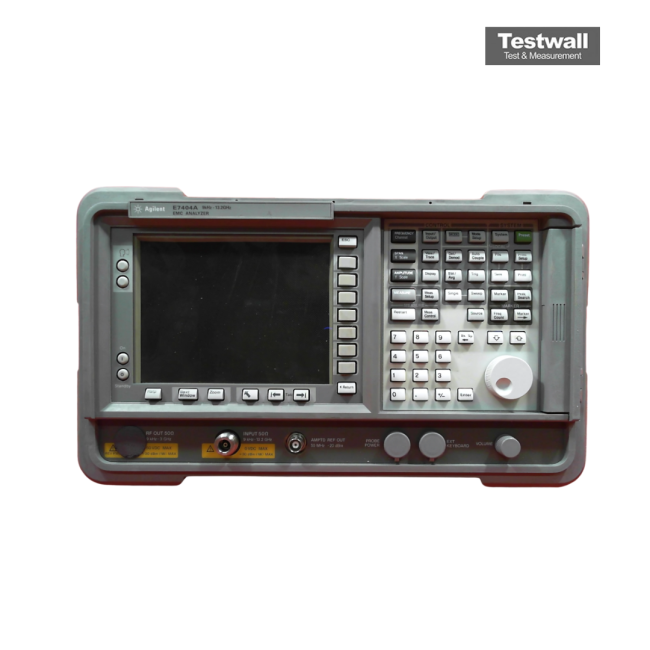

The Keysight (Agilent) E7404A EMI Test Receiver is engineered for advanced EMI precompliance testing. It features automatic EMI measurements, log sweep functionality, and a built-in preamplifier, all enclosed in a rugged, portable design. Supporting radiated and conducted emissions diagnostics, it includes a 3.5'' disk drive, 5-minute warm-up, and is compatible with BenchLink Web Remote software.
Ideal for early EMI evaluations, the E7404A works seamlessly with broadband antennas, LISN devices, and close field probes to detect and isolate emission problems efficiently.
Testwall can supply the used Keysight (Agilent) E7404A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E7404A.
