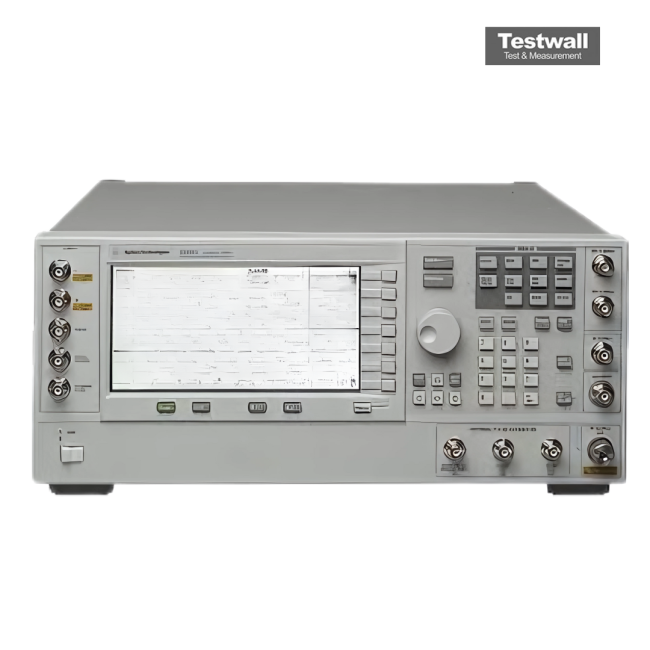

Keysight (Agilent) E8267C
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 20 GHz |
| Frequency Resolution | 0.001 Hz |
| Interfaces | GPIB, LAN, RS-232 |
| Output Power | up to +18 dBm at 3.2 to 20 GHz; -135 dBm with step attenuator |
| Modulation | I/Q, AM, FM, ΦM, pulse; PSK, QAM, FSK, MSK (internal baseband) |
| Modulation Bandwidth | 80 MHz internal baseband; 160 MHz external I/Q; 1 GHz wideband external I/Q |
| Sweep Modes | step sweep, list mode, ramp sweep |
| RF Output Connector | 3.5 mm male or Type-N |
Available configurations
| Model | Frequency range | Configuration |
| E8267C-520 | 250 kHz to 20 GHz | Vector signal generator |
Keysight Technologies E8267C Options:
- E8267C - 520 - Frequency range 250 kHz to 20 GHz
- E8267C - 003 - Enables digital output connectivity with N5102A
- E8267C - 004 - Enables digital input connectivity with N5102A
- E8267C - UNR - Enhanced close-in phase noise
- E8267C - 1E6 - Narrow pulse modulation below 3.2 GHz
- E8267C - 007 - Ramp (analog) sweep
- E8267C - 602 - Internal baseband generator, 64 MSa memory
- E8267C - 005 - 6 GB internal hard drive
- E8267C - 015 - Wideband external I/Q inputs
- E8267C - 1ED - Type-N (f) connector
- E8267C - 1EM - Moves all connectors to rear panel
- E8267C - 1CM - Rack mount kit
- E8267C - 1CN - Front handle kit
- E8267C - 1CP - Rack mount kit with front handle kit
- E8267C - 408 - Signal Studio software for enhanced multitone signals
- E8267C - 417 - Signal Studio software for 802.11 a/b/g WLAN signals
- E8267C - 420 - Signal Studio software for pulse building
- E8267C - 421 - Signal Studio software for noise power ratio
- E8267C - SP1 - Signal Studio for jitter injection
- E8267C - HEH - Improve low band harmonics (from 10 MHz to 2.0 GHz)
The Keysight (Agilent) E8267C PSG is a state-of-the-art vector signal generator offering direct I/Q modulation up to 20 GHz with a 1 GHz RF modulation bandwidth. It includes an 80 MHz internal baseband generator, real-time I/Q symbol generation up to 50 Msym/s, and high-precision arbitrary waveform playback. The generator features advanced modulation formats and wide frequency range from 250 kHz to 20 GHz, ensuring exceptional phase noise and output accuracy.
Ideal for aerospace, defense, satellite communication, and broadband wireless testing, the E8267C supports complex vector signal creation with modular customization options and remote control over LAN and GPIB.
Testwall can supply the used Keysight (Agilent) E8267C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8267C.
Options and configurations
- Frequency Range: 250 kHz to 20 GHz (Opt. 520)
- Modulation Bandwidth: 80 MHz internal baseband; 160 MHz external I/Q; 1 GHz wideband external I/Q (Opt. 015)
- RF Output Connector: 3.5 mm male or Type-N (Opt. 1ED)
