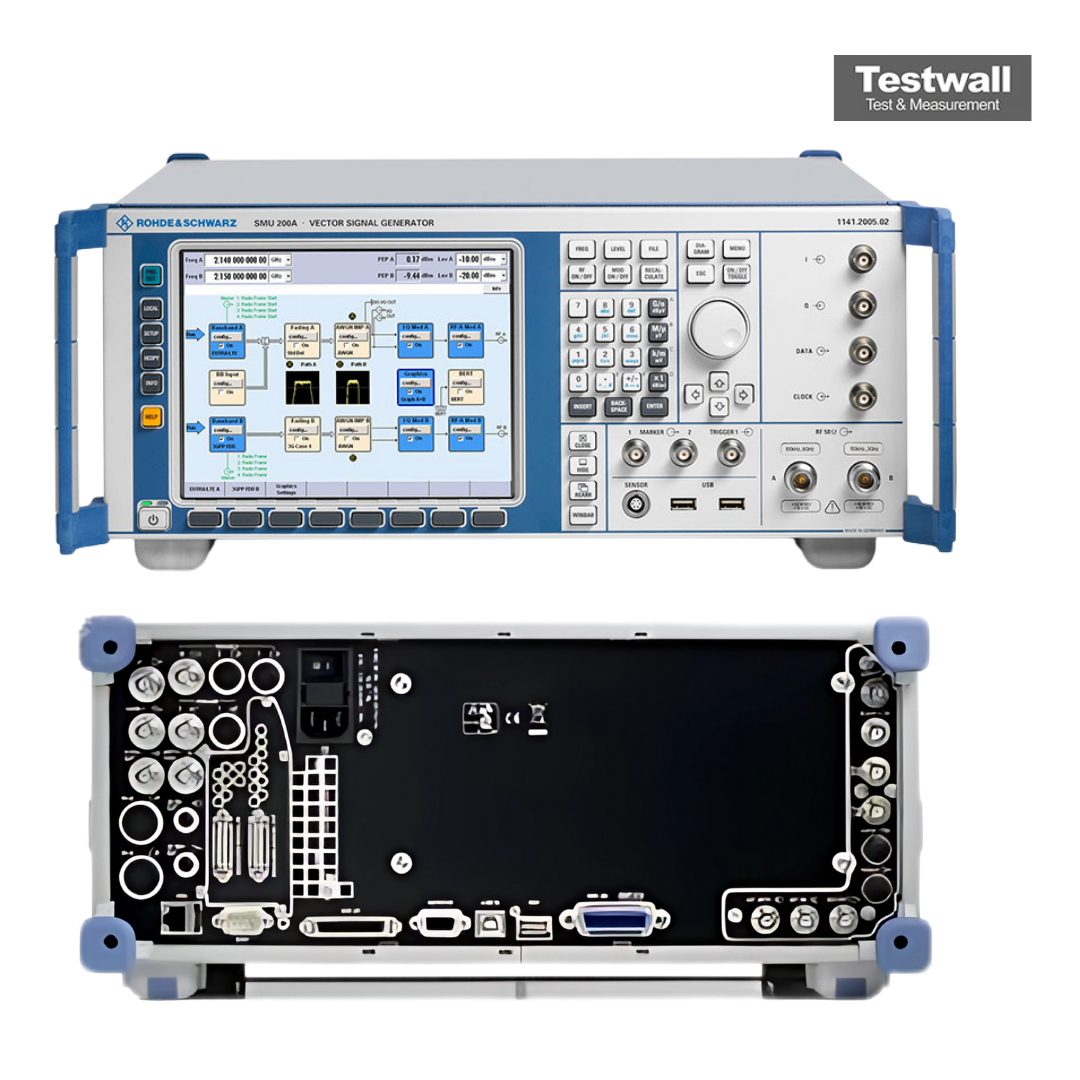

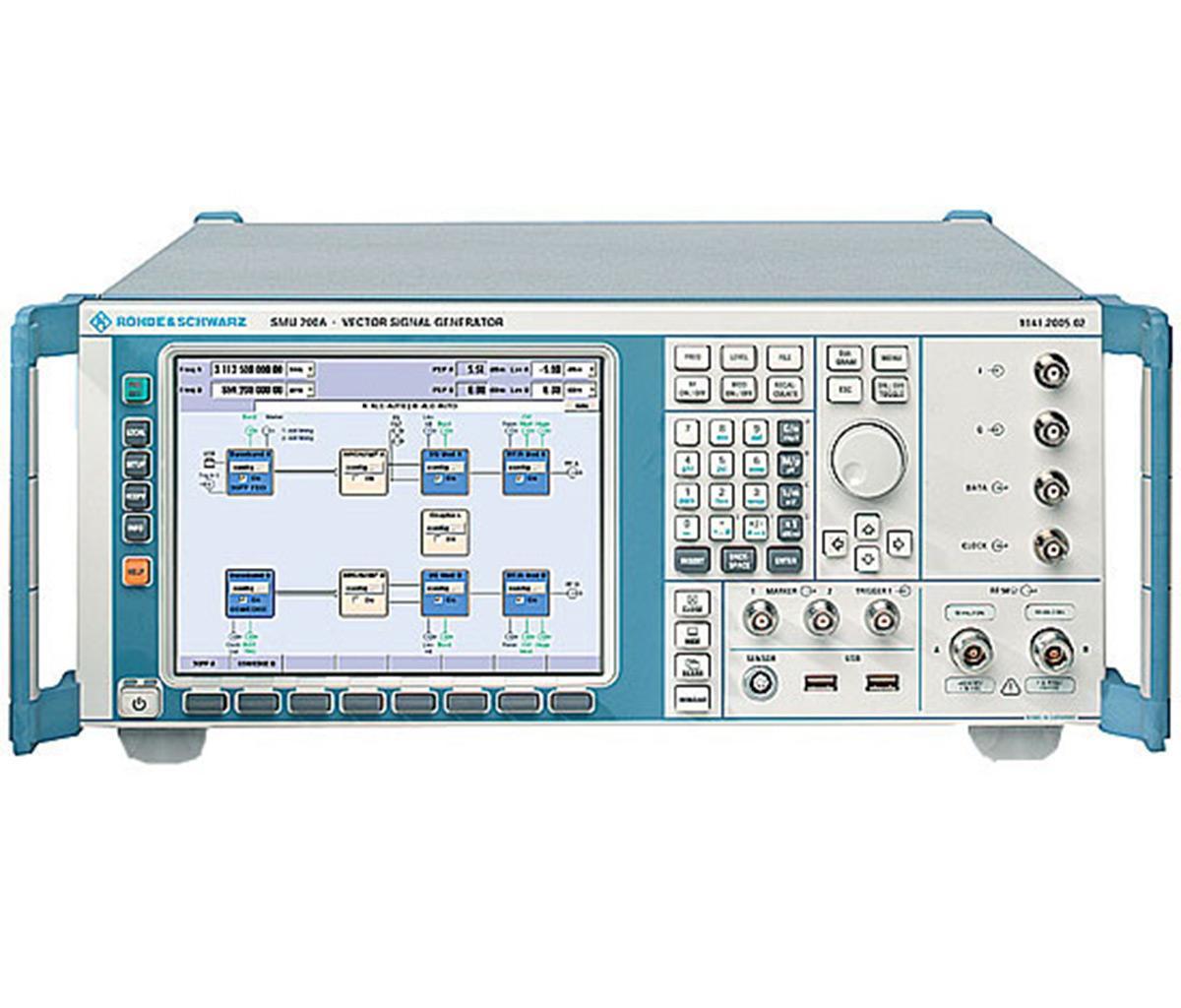

Rohde & Schwarz SMU200A-B102
100kHz to 2.2GHz Vector Signal Generator
100 kHz to 2.2 GHz (Opt. B102) Frequency Range
0.01 Hz Frequency Resolution
< -30 dBc (level < 8 dBm) Harmonics
GPIB, LAN, USB Interfaces
color, 800 × 600 Display
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 2.2 GHz (Opt. B102) |
| Frequency Resolution | 0.01 Hz |
| Harmonics | < -30 dBc (level < 8 dBm) |
| Interfaces | GPIB, LAN, USB |
| Display | color, 800 × 600 |
| Output Power | -145 to +13 dBm (PEP, ≤ 3 GHz), +11 dBm (> 3 GHz); +19/+17 dBm with Opt. B31/B36 |
| SSB Phase Noise | < -131 dBc/Hz at 1 GHz, 20 kHz offset (-135 typ.); < -136 dBc/Hz with Opt. B22 (-139 typ.) |
| Modulation | AM, FM, ΦM (Opt. B20/B22), I/Q, pulse, AWGN |
| Level Accuracy | < 0.5 dB (1 MHz to 3 GHz), < 0.9 dB (> 3 GHz) |
| Non-Harmonics | < -77 dBc (0.3 to 200 MHz), < -90 dBc (200 to 1500 MHz), < -84 dBc (1.5 to 3 GHz) |
| Switching Speed | < 2 ms (1.5 ms typ.); < 450 µs list mode |
| Modulation Bandwidth | 200 MHz RF bandwidth (external I/Q), 40 MHz internal baseband |
| Sweep Modes | step sweep, power sweep, list mode |
| Timebase Aging | 1 × 10⁻⁷ per year, 1 × 10⁻⁹ per day |
| Dimensions | 435 × 192 × 460 mm |
| Weight | 25 kg |
Rohde & Schwarz SMU200A-B103 Options:
- SMU200A - SMU-B16 - Differential Outputs (I OUT BAR / Q OUT BAR)
- SMU200A - SMU-B17 - Baseband Input
- SMU200A - SMU-B81 - Rear Panel Connectors for path 1 (recommended for use in 19" rack)
- SMU200A - SMU-B82 - Rear Panel Connectors for path 2 (recommended for use in 19" rack)
- SMU200A - SMU-Z5 - Adapter of AUX I/O interface to coaxial BNC connectors
- SMU200A - 1007.9845.32 - Operating and Service Manual (printed, English, A4 format)
- SMU200A - 1007.9845.39 - Operating and Service Manual (printed, English, letter format)
The Rohde & Schwarz SMU200A-3 is a versatile RF Vector Signal Generator covering 100kHz to 2.2GHz, supporting up to two RF and baseband paths. It enables advanced testing scenarios like 2x2 MIMO with realtime fading and offers optional fading simulation with up to 40 fading paths.
It supports modern wireless standards such as LTE, GSM, EDGE, HSPA+, WiMAX, and more. Modular architecture ensures flexibility and outstanding RF performance.
Testwall can supply the used Rohde & Schwarz SMU200A-3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMU200A-3.
