Keysight (Agilent) E8312A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Output Power Range | -110 dBm to +20 dBm |
| Frequency Resolution | 0.001 Hz |
| Phase Noise | -115 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| Harmonic Spurious | -30 dBc typical |
| Output Impedance | 50 Ohm |
| Connector Type | Type-N Female (RF Output) |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Model | E8312A |
|---|

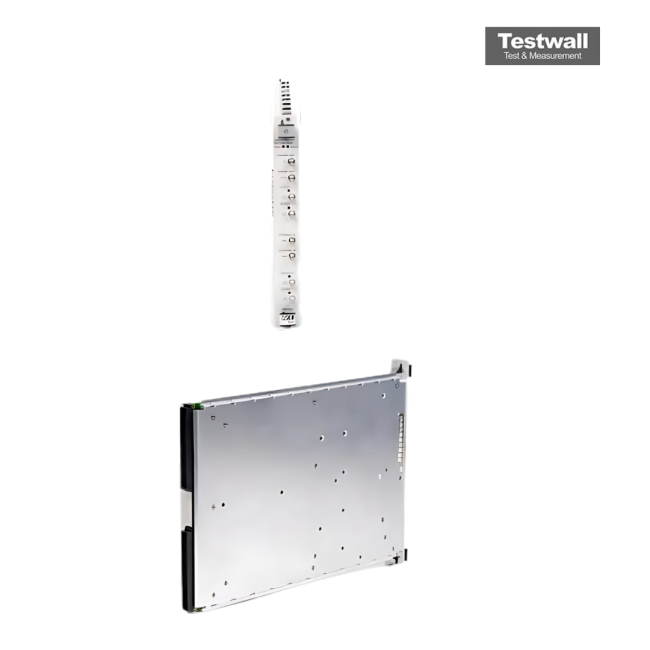

The Keysight (Agilent) E8312A is a dual-channel pulse/pattern generator designed for high-speed digital testing at up to 330 MHz. Each channel supports 16 Kbit pattern lengths and delivers fast transition times of 0.8 ns or 1.6 ns, ensuring precision in demanding applications.
It provides extensive trigger and synchronization options, making it ideal for characterizing high-speed digital circuits, testing components, or evaluating system timing.
Testwall can supply the used Keysight (Agilent) E8312A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8312A.
