Tektronix DTG5078
| Attribute | Value |
|---|---|
| Number of Channels | 8 Channels |
| Maximum Data Rate | 750 Mb/s per channel |
| Memory Depth | 64 Mb per channel |
| Voltage Output Range | -2 V to +4 V (adjustable high/low levels) |
| Timing Resolution | 13.3 ps (at 750 Mb/s) |
| Output Impedance | 50 Ω |
| Clock Reference | Internal and External Clock Reference supported |
| Operating System | Windows XP Embedded |
| Interface/Connectivity | GPIB, LAN (Ethernet), USB |
| Power Requirements | 100–240 V AC, 50/60 Hz |
| Model | DTG5078 |
|---|

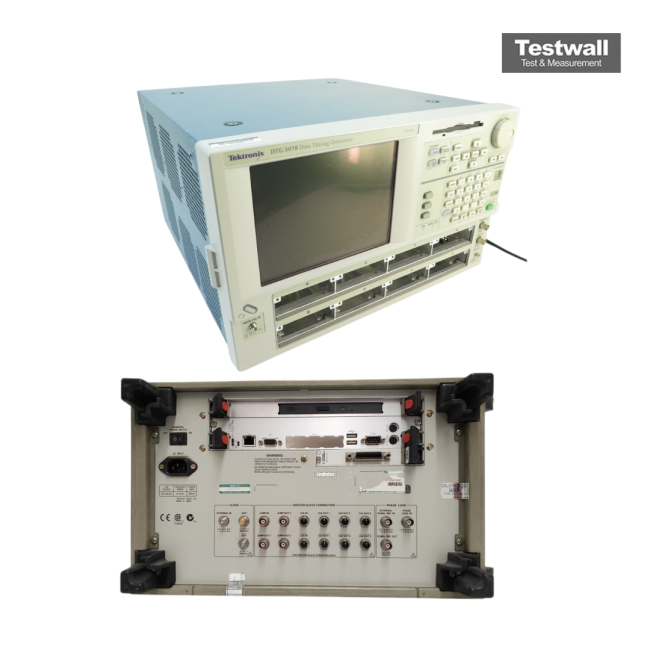

The Tektronix DTG5078 is a modular 8-slot Data Timing Generator supporting up to 96 channels and data rates up to 2.7 Gbps, extendable to 3.35 Gbps. It delivers 1 ps delay resolution and up to 600 ns total delay, with advanced jitter generation, level control with 5 mV precision, and variable edge slew rates—ideal for generating complex signals and precise clock synchronization.
Designed to support a range of testing needs, it combines the capabilities of a data generator, pulse generator, and DC source, with scalable architecture for future upgrades and extensive signal parameter control for stressed eye generation and other precision tasks.
Testwall can supply the used Tektronix DTG5078, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DTG5078.
