Keysight (Agilent) E8356A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 2 |
| Dynamic Range | 120 dB |
| Output Power Range | -85 dBm to +20 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, group delay |
| Connector Type | Type-N, 50 Ohm |
| System Impedance | 50 Ohm |
| Number of Data Points | 1 to 1601 points per sweep |
| IF Bandwidth | 1 Hz to 40 kHz |
| Power Supply | 100–240 VAC, 50/60 Hz |
Keysight Technologies E8267D Options:
- E8267D - 513 - Frequency range from 250 kHz to 13 GHz
- E8267D - 520 - Frequency range from 250 kHz to 20 GHz
- E8267D - 532 - Frequency range from 250 kHz to 31.8 GHz
- E8267D - 544 - Frequency range from 250 kHz to 44 GHz
- E8267D - 602 - Internal baseband generator, 64 MSa memory
- E8267D - 003 - Digital output connectivity with N5102A
- E8267D - 004 - Digital input connectivity with N5102A
- E8267D - 007 - Analog ramp sweep
- E8267D - 009 - 8 GB removable flash memory
- E8267D - 016 - Wideband external I/Q inputs
- E8267D - 403 - Calibrated AWGN
- E8267D - 409 - Global positioning system (GPS) personality
- E8267D - 423 - Scenario generator for GPS personality
- E8267D - UNX - Ultra low phase noise
- E8267D - UNY - Enhanced ultra low phase noise
- E8267D - UNT - AM, FM, phase modulation, and LF output
- E8267D - UNU - Pulse modulation
- E8267D - UNW - Narrow pulse modulation
- E8267D - 1ED - Type-N (f) RF output connector
- E8267D - 1EH - Improved harmonics below 2 GHz
- E8267D - 1EM - Moves all front panel connectors to the rear panel
- E8267D - 1CN - Front handle kit
- E8267D - 1CM - Rackmount flange kit
- E8267D - 1CP - Rackmount flange and front handle kit
- E8267D - UK6 - Commercial calibration certificate and test data
- E8267D - A6J - Z540-1-1994 calibration
- E8267D - AMG - Calibration + uncertainties + guardbanding (accredited)
- E8267D - 1A7 - Calibration + uncertainties + guardbanding
- E8267D - CD1 - CD-ROM containing the English documentation set
- E8267D - ABA - Printed copy of the English documentation set
- E8267D - SP2 - Dynamic sequencing capability
- E8267D - SP1 - Signal Studio for jitter injection
- E8267D - H1S - 1 GHz external frequency reference input
- E8267D - H1G - Connections for phase coherency and improved phase stability < 250 MHz
- E8267D - HCC - Connections for phase coherency > 250 MHz
- E8267D - H18 - Wideband modulation below 3.2 GHz
| Model | E8356A |
|---|

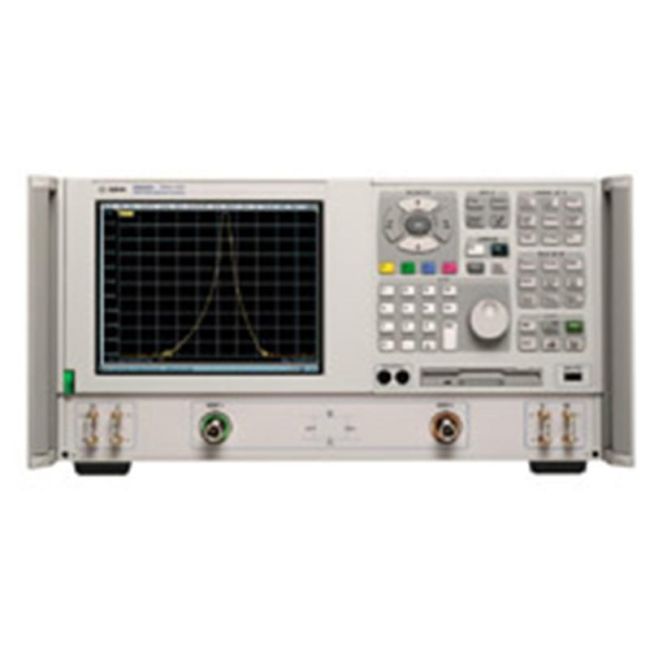

The Keysight (Agilent) E8356A Vector Network Analyzer from the PNA Series operates from 300 kHz to 3 GHz, delivering a 128 dB dynamic range at the test port and 143 dB with direct receiver access. It supports TRL/LRM calibration, standard bias-tees, and direct receiver access, making it ideal for both on-wafer and in-fixture testing. It features USB-controlled ECal, 35 µs/point sweep speed, and advanced COM/DCOM and SCPI automation compatibility.
Perfect for both R&D and manufacturing, the E8356A includes powerful automation tools and a Windows 2000 OS, ensuring high-speed, low-noise, and flexible connectivity testing for active and passive components.
Testwall can supply the used Keysight (Agilent) E8356A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8356A.
