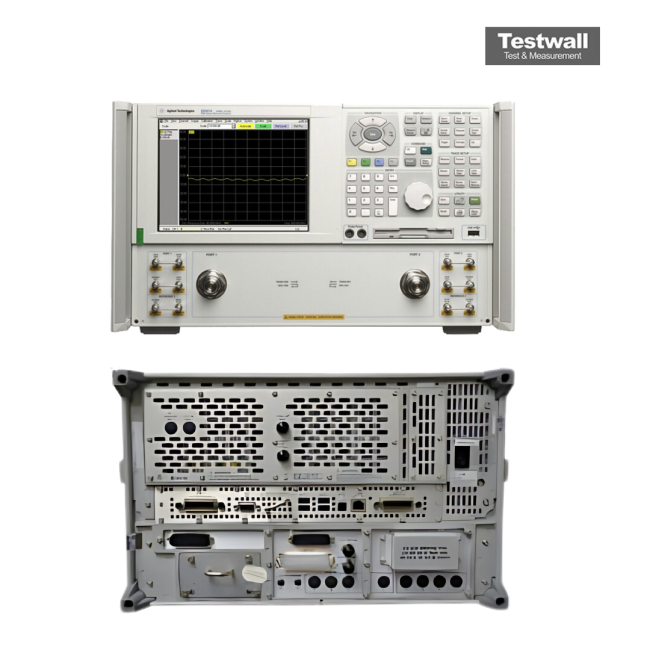

Keysight (Agilent) E8361A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 67 GHz |
| Number of Ports | 2-Port |
| Dynamic Range | Up to 118 dB |
| Output Power Range | -45 dBm to +10 dBm |
| Connector Type | 1.85 mm (V-connector) |
| Measurement Parameters | S-parameters, impedance, admittance, group delay, phase, and gain compression |
| IF Bandwidth | 1 Hz to 40 kHz |
| Trace Noise (Magnitude) | 0.004 dB RMS at 10 Hz IF bandwidth |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Keysight (Agilent) E8361A Options:
Options available for the Keysight (Agilent) PNA series microwave network analyzers (E8361/E8362/E8363/E8364). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- E8361A - 010 - Time-domain measurements
- E8361A - 014 - Configurable test set (front-panel access loops)
- E8361A - UNL - Extended power range and bias-tees
- E8361A - 016 - Receiver attenuators
- E8361A - 080 - Frequency-offset mode
- E8361A - 081 - Reference receiver switch
- E8361A - 082 - Scalar-calibrated converter measurements
- E8361A - 083 - Frequency converter application with vector-calibrated measurements
- E8361A - H08 - Pulsed-RF measurement capability
- E8361A - H11 - IF access
- E8361A - 1CM - Rack mount kit
- E8361A - 1CP - Rack mount kit with handles
The Keysight (Agilent) E8361A Network Analyzer offers a powerful platform with 94 dB dynamic range and less than 0.006 dB trace noise, operating up to 70 GHz. It delivers high-speed performance with <26 µs/point measurement, 32 channels, and 16,001 points.
Supports TRL/LRM calibration and diverse testing setups including on-wafer, in-fixture, waveguide, and antenna measurements, with mixer and amplifier characterization capabilities.
Testwall can supply the used Keysight (Agilent) E8361A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8361A.
