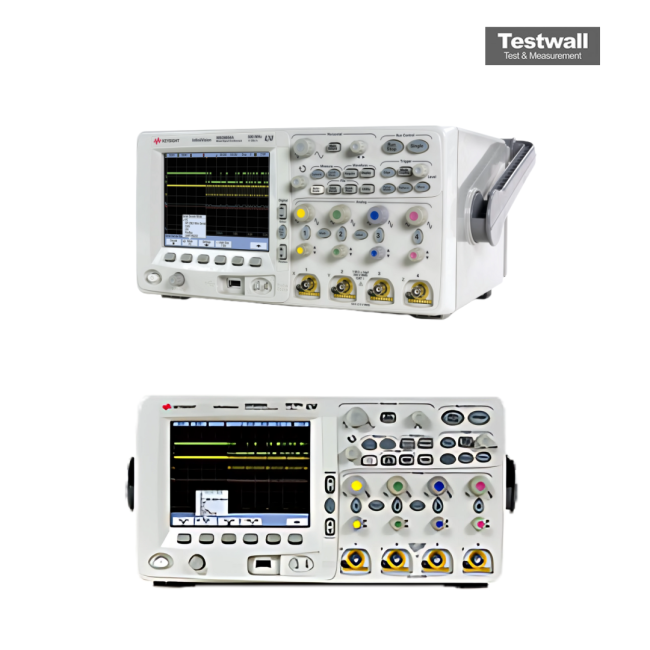

Keysight (Agilent) MSO6054A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 4 GSa/s |
| Maximum Memory Depth | 8 Mpts (standard), up to 32 Mpts (optional) |
| Display | 8.5-inch XGA color display (1024 x 768 resolution) |
| Rise Time | 700 ps |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF, or 50 Ω ± 1.5% |
| Waveform Update Rate | Up to 100,000 waveforms per second |
| Connectivity and I/O Ports | USB, LAN (LXI Core 2011), GPIB (optional), XGA video output |
Keysight Technologies MSO6054A Options:
- MSO6054A - Option 2MH - 2 Mpts memory for MSO605xA/610xA models
- MSO6054A - Option 8MH - 8 Mpts memory for MSO605xA/610xA models
- MSO6054A - N2912A - 2 Mpts memory for MSO605xA/610xA models (after purchase)
- MSO6054A - N2913A - 8 Mpts memory for MSO605xA/610xA models (after purchase)
- MSO6054A - N2915A - MSO upgrade kit for DSO605xA/610xA models (for DSOs only)
- MSO6054A - R-51B-001-3C - 1-year return-to-Agilent warranty, extended to 3-years
- MSO6054A - R-51B-001-5C - 1-year return-to-Agilent warranty, extended to 5-years
- MSO6054A - A6J - ANSI Z540-compliant calibration
- MSO6054A - ABA - Printed user's guide in English
- MSO6054A - ABJ - Printed user's guide in Japanese
- MSO6054A - AB2 - Printed user's guide in simplified Chinese
| Model | MSO6054A |
|---|
The Keysight (Agilent) MSO6054A is a 500 MHz mixed signal oscilloscope featuring 4 analog and 16 digital channels. It offers 4 GSa/s sampling, MegaZoom III deep memory up to 8 Mpts, and an industry-leading waveform update rate of 100,000 wfms/sec. With a 256-level intensity color display and advanced connectivity options including USB, LAN, GPIB, and XGA out, it’s ideal for thorough signal analysis and debugging.
This oscilloscope includes digital debug software for FPGAs, serial decode for protocols like I2C, SPI, and CAN, and is equipped with logic probes, passive probes, and comprehensive user documentation, ensuring robust performance and usability.
Testwall can supply the used Keysight (Agilent) MSO6054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO6054A.
