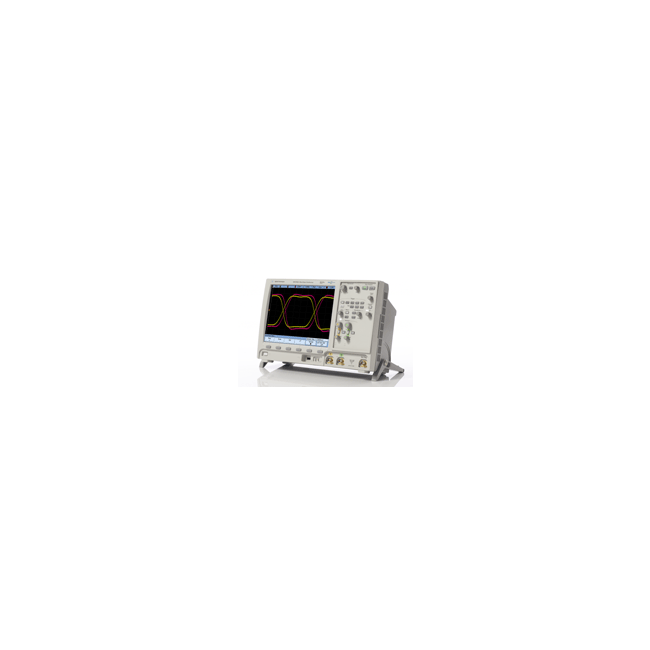

Keysight (Agilent) MSO7014A
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Maximum Sample Rate | 4 GSa/s |
| Memory Depth | 8 Mpts (standard), up to 16 Mpts (optional) |
| Vertical Resolution | 8 bits |
| Timebase Range | 5 ns/div to 50 s/div |
| Display | 12.1-inch XGA color display (1024 x 768) |
| Waveform Update Rate | Up to 100,000 waveforms per second |
| Serial Protocol Triggering and Analysis | Supports I2C, SPI, UART/RS-232, CAN, LIN (with options) |
Keysight (Agilent) MSO7014A Options:
- MSO7014A - SEC - Secure Environment Mode - Provides compliance with National Industrial Security Program Operating Manual (NISPOM) Chapter 8 requirements (factory-installed option only for new purchase)
- MSO7014A - A6J - ANSI Z540 compliant calibration
- MSO7014A - AMS - CAN/LIN automotive triggering and decode (4 and 4+16 channel models only)
- MSO7014A - LSS - I2C/SPI serial decode option (for 4/4+16 channel models only)
- MSO7014A - 232 - RS-232/UART triggering and decode (4 and 4+16 channel models only)
- MSO7014A - SND - I2S Triggering and Decode (4 and 4+16 channel models only)
- MSO7014A - FLX - FlexRay Measurements (4 and 4+16 channel models only)
- MSO7014A - 553 - MIL-STD 1553 Triggering and Decode (4 and 4+16 channel models only)
- MSO7014A - SGM - Segmented memory
- MSO7014A - LMT - Mask limit testing
| Model | MSO7014A |
|---|
The Keysight (Agilent) MSO7014A Infiniium Series Oscilloscope offers 100 MHz bandwidth with 4 analog and 16 digital channels, enabling comprehensive signal integrity analysis in embedded systems. It supports up to 2 GSa/s sample rate and 8 Mpts standard memory, expandable for deeper insights.
Equipped with advanced triggering, integrated protocol analysis, and scalable upgrade options, the MSO7014A provides versatile debugging for complex applications.
Testwall can supply the used Keysight (Agilent) MSO7014A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO7014A.
