Rohde & Schwarz RTP134B
| Attribute | Value |
|---|---|
| Bandwidth | 13 GHz (2 channels) / 8 GHz (4 channels) |
| Number of Channels | 2/4 channels |
| Sample Rate | Up to 40 GS/s |
| Memory Depth | 100 Mpoints/ch (up to 3 Gpoints optional) |
| Vertical Resolution | 8-bit (up to 16-bit in HD mode) |
| Sample Rate (detail) | 20 GS/s per channel, 40 GS/s interleaved on 2 channels |
| Waveform Update Rate | > 750,000 waveforms per second (3,200,000 in ultra-segmented mode) |
| Input Impedance | 50 Ω |
| Digital Channels | 16 with MSO option RTP-B1 (400 MHz, 5 GS/s) |
| Display | 13.3-inch Full HD (1920 x 1080) capacitive touchscreen |
| Connectivity | 1 Gbit/s LAN, 4x USB 3.1 Type A, USB 3.1 Type B, GPIB, HDMI, DisplayPort |
| Bandwidth Upgrades | to 16 GHz |
| Series | Rohde & Schwarz RTP Series B |
Rohde & Schwarz RTP134B Options:
- RTP134B - RTP-B1 - Mixed signal option, 16 digital channels
- RTP134B - RTP-B7 - Pulse source (22 ps) for deskew and TDR/TDT
- RTP134B - RTP-B130 - Memory upgrade to 3 Gpoints per channel
- RTP134B - RTP-K136 - Real-time CDR and eye diagram, 8 Gbps
- RTP134B - RTP-K137 - Real-time CDR and eye diagram, 16 Gbps
- RTP134B - RTP-K39 - User-defined math (Python)

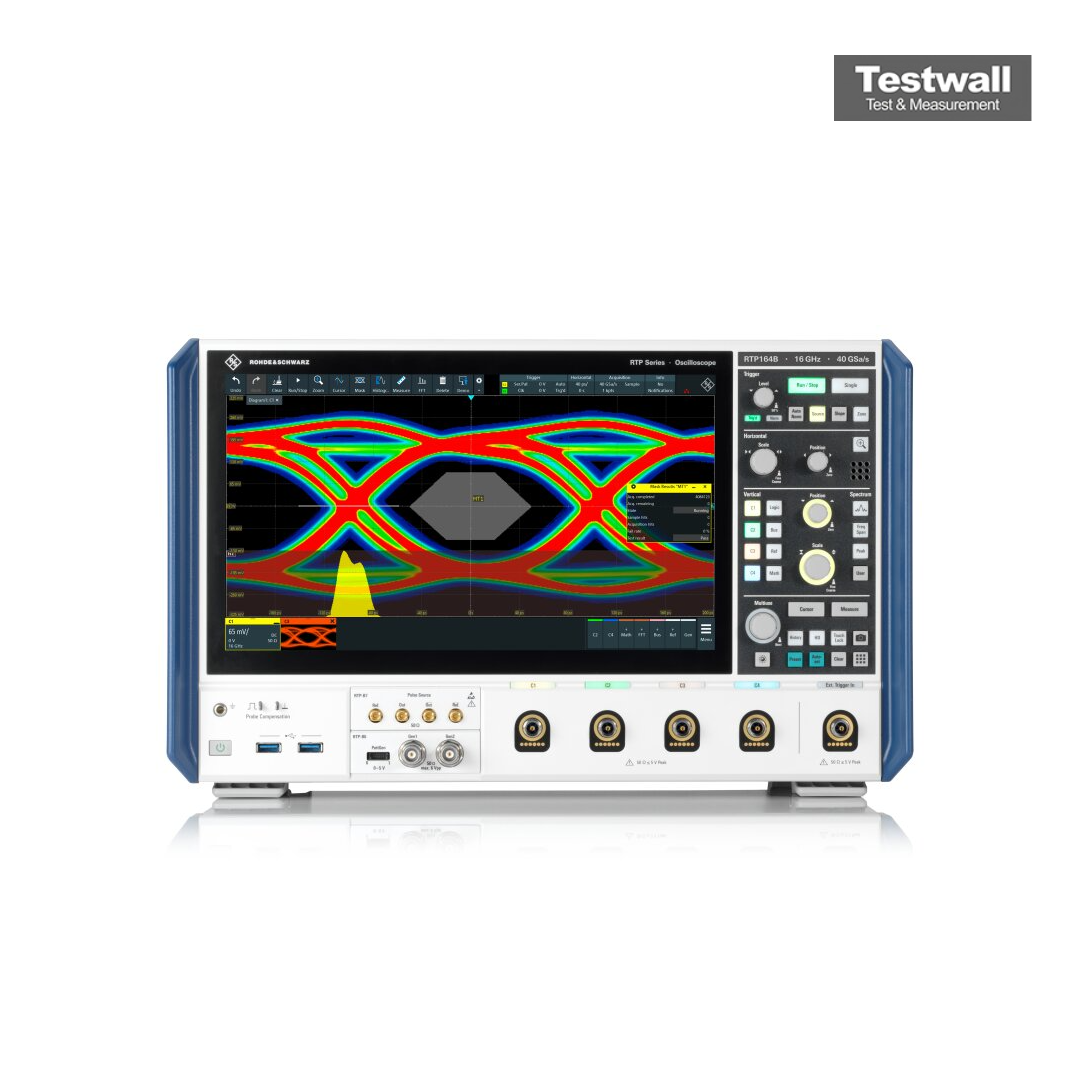

The Rohde & Schwarz RTP134B is a 13 GHz model of the RTP Series B, the 2022 update of R&S's high-performance oscilloscope. Series B brings a 13.3-inch Full HD touchscreen, a new user interface and 100 Mpoints of memory per channel as standard (up to 3 Gpoints), while keeping the RTP's real-time digital trigger, hardware-accelerated de-embedding and more than 750,000 waveforms per second. It samples at 20 GS/s per channel and 40 GS/s interleaved, with 8-bit resolution (up to 16-bit in HD mode).
The RTP is used for signal integrity, high-speed serial bus, RF and pulse measurements, with hardware clock data recovery up to 16 Gbps for real-time eye diagrams (RTP-K136/K137). Bandwidth upgrades: to 16 GHz. Tell us the bandwidth, memory and options you need when you request a quote.
Testwall can supply the used Rohde & Schwarz RTP134B, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Rohde & Schwarz RTP134B.
