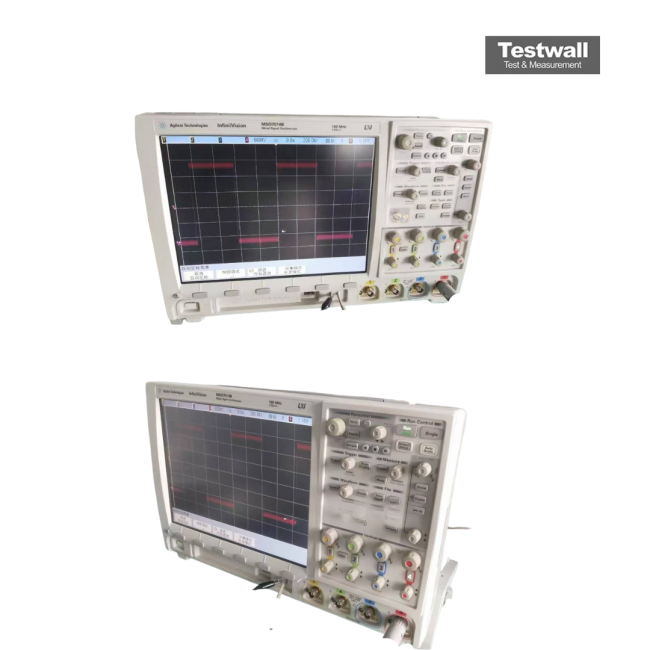

Keysight (Agilent) MSO7014B
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Maximum Sample Rate | 4 GSa/s |
| Memory Depth | 8 Mpts (standard), up to 32 Mpts (optional) |
| Vertical Resolution | 8-bit |
| Display | 12.1-inch XGA color LCD touchscreen |
| Waveform Update Rate | Up to 100,000 waveforms per second |
| Serial Protocol Triggering and Analysis | I2C, SPI, UART/RS232, CAN, LIN (optional) |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Keysight (Agilent) MSO7014B Options:
- MSO7014B - 002 - N2871A 10:1 150 MHz passive probe with probe ID (optional with 100 MHz models)
- MSO7014B - SEC - Secure Environment Mode - Provides compliance with National Industrial Security Program Operating Manual (NISPOM) Chapter 8 requirements (factory-installed option only for new purchase)
- MSO7014B - A6J - ANSI Z540 compliant calibration
- MSO7014B - AMS - CAN/LIN automotive triggering and decode (4 and 4+16 channel models only)
- MSO7014B - LSS - I2C/SPI serial decode option (for 4/4+16 channel models only)
- MSO7014B - 232 - RS-232/UART triggering and decode (4 and 4+16 channel models only)
- MSO7014B - SND - I2S Triggering and Decode (4 and 4+16 channel models only)
- MSO7014B - FLX - FlexRay Measurements (4 and 4+16 channel models only)
- MSO7014B - 553 - MIL-STD 1553 Triggering and Decode (4 and 4+16 channel models only)
- MSO7014B - SGM - Segmented memory
- MSO7014B - LMT - Mask limit testing
| Model | MSO7014B |
|---|
The Keysight (Agilent) MSO7014B Mixed Signal Oscilloscope features a 100 MHz bandwidth, 2 GSa/s sample rate, 4 analog and 16 digital channels, with standard 8 Mpts deep memory and a 12.1” XGA display. It supports up to 100,000 waveforms/sec for detailed signal visibility.
This oscilloscope includes automatic search, navigation, segmented memory, and supports various serial protocol decodes like I2C, SPI, CAN, and more for precise and versatile diagnostics.
Testwall can supply the used Keysight (Agilent) MSO7014B Mixed Signal Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO7014B Mixed Signal Oscilloscope.
