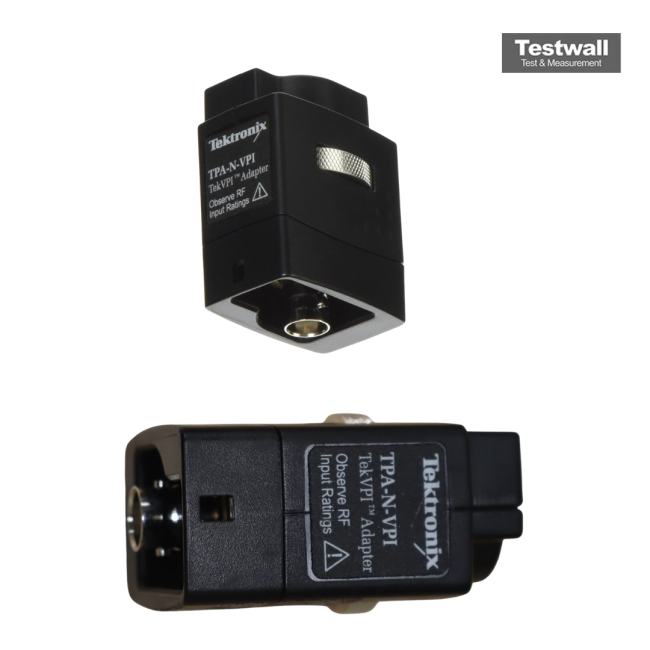

Tektronix TPA-N-VPI
| Attribute | Value |
|---|---|
| Compatibility | Tektronix TDS/TPS/DPO/MSO Series Oscilloscopes with TekVPI Probe Interface |
| Probe Interface Type | TekVPI (Versatile Probe Interface) |
| Adapter Function | Converts TekVPI probe interface to accept N-connector passive probes and accessories |
| Connector Type | N-Type Connector |
| Input Impedance | 50 Ohms |
| Frequency Range | DC to 4 GHz |
| Maximum Input Voltage | ±30 V (DC + Peak AC) |
| VSWR | ≤ 1.5:1 up to 4 GHz |
| Operating Temperature | 0°C to +50°C |
| Dimensions | Compact adapter form factor designed for direct attachment to TekVPI probe port |
Tektronix TPA-N-VPI Options:
- TPA-BNC - C3 - Calibration Service 3 years (initial certification, plus 2 calibrations)
- TPA-BNC - C5 - Calibration Service 5 years (initial certification, plus 4 calibrations)
- TPA-BNC - R3 - Repair Service. Repair warranty extended to cover 3 years
- TPA-BNC - R5 - Repair Service. Repair warranty extended to cover 3 years
- TPA-BNC - SILV200 - Standard Warranty Extended to 5 Years
| Model | TPA-N-VPI |
|---|
The Tektronix TPA-N-VPI Adapter is designed to convert an N connector to a TekVPI interface, supporting a bandwidth of 6 GHz with attenuation ≤ 0.5 dB and VSWR ≤ 1.3:1. It enables seamless signal acquisition using 50-ohm active TekVPI probes on RF input devices like MDO/MSO/DPO Series oscilloscopes, delivering consistent, high-fidelity results even in sensitive applications.
This adapter facilitates true signal "browsing" on RF inputs and is compatible with probes using BNC, TekProbe, and TekVPI outputs.
Testwall can supply the used Tektronix TPA-N-VPI, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TPA-N-VPI.
