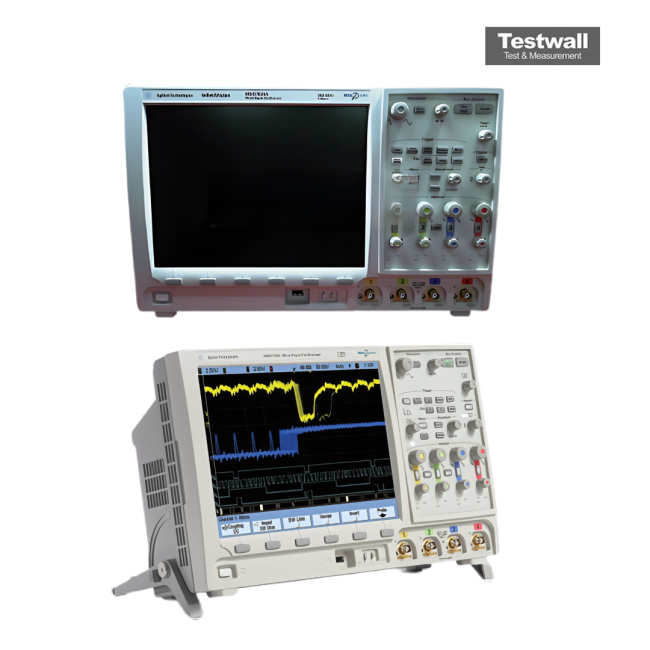

Keysight (Agilent) MSO7034A
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Maximum Sample Rate | 2 GSa/s |
| Memory Depth | 8 Mpts (standard), up to 16 Mpts with option |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 12.1-inch XGA color display (1024 x 768) |
| Serial Protocol Triggering and Analysis | I2C, SPI, UART/RS232, CAN, LIN (with options) |
| Model | MSO7034A |
|---|
The Keysight (Agilent) MSO7034A offers 350 MHz bandwidth, 4 analog and 16 digital channels, and a 2 GSa/s sample rate. It features 8 Mpts MegaZoom III memory and a 12.1” XGA display with 256 intensity levels for high signal visibility. Its 100,000 waveforms/sec update rate captures infrequent events, and serial protocol support includes I2C, SPI, CAN, and more.
This mixed signal oscilloscope supports FPGA debug for Xilinx and Altera devices, segmented memory, and PC-based offline analysis.
Testwall can supply the used Keysight (Agilent) MSO7034A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO7034A.
