Tektronix TPS2012B
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Input Isolation | Isolated channel inputs (up to 300 V CAT II) |
| Display | 5.7-inch color TFT LCD |
| Power Source | Battery powered (NiMH battery pack) or AC adapter |
Tektronix TPS2012B Options:
- TPS2012B - Opt. A0 - North America power
- TPS2012B - Opt. A1 - Universal Euro power
- TPS2012B - Opt. A2 - United Kingdom power
- TPS2012B - Opt. A3 - Australia power
- TPS2012B - Opt. A5 - Switzerland power
- TPS2012B - Opt. A6 - Japan power
- TPS2012B - Opt. A10 - China power
- TPS2012B - Opt. A11 - India power
- TPS2012B - Opt. A12 - Brazil power
- TPS2012B - Opt. A99 - No power cord or AC adapter
- TPS2012B - Opt. L0 - English user manual (071-1441-xx)
- TPS2012B - Opt. L1 - French user manual (071-1442-xx)
- TPS2012B - Opt. L2 - Italian user manual (071-1443-xx)
- TPS2012B - Opt. L3 - German user manual (071-1444-xx)
- TPS2012B - Opt. L4 - Spanish user manual (071-1445-xx)
- TPS2012B - Opt. L5 - Japanese user manual (071-1446-xx)
- TPS2012B - Opt. L6 - Portuguese user manual (071-1447-xx)
- TPS2012B - Opt. L7 - Simplified Chinese user manual (071-1448-xx)
- TPS2012B - Opt. L8 - Traditional Chinese user manual (071-1449-xx)
- TPS2012B - Opt. L9 - Korean user manual (071-1450-xx)
- TPS2012B - Opt. L10 - Russian user manual (071-1451-xx)
- TPS2012B - Opt. SILV200 - Standard Warranty Extended to 5 Years
| Model | TPS2012B |
|---|

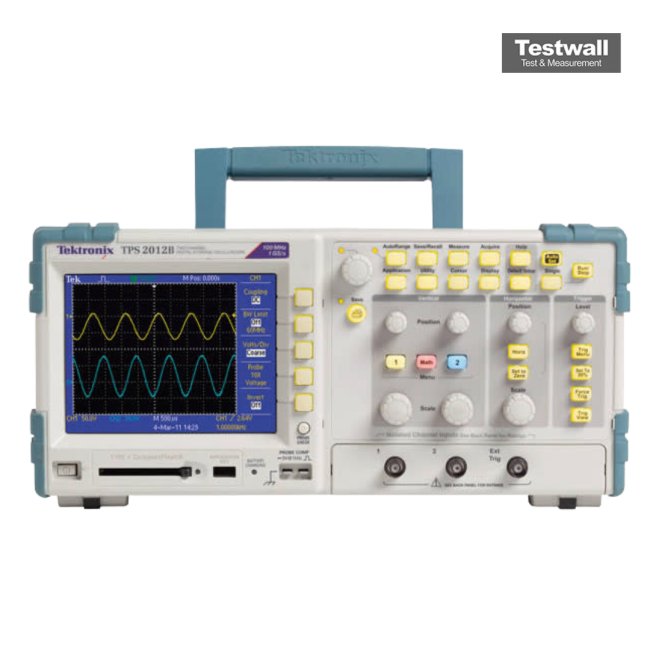

The Tektronix TPS2012B is a 2-channel, 100 MHz digital oscilloscope featuring IsolatedChannel technology for floating and differential measurements. It provides 2 GS/s real-time sampling, 2.5k memory depth, FFT, and 8-hour battery runtime. Designed for field and power electronics, it includes advanced triggering and power analysis capabilities.
With isolated inputs and hot-swappable batteries, it ensures safety and uninterrupted performance in industrial, automotive, and educational environments.
Testwall can supply the used Tektronix TPS2012B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TPS2012B.
