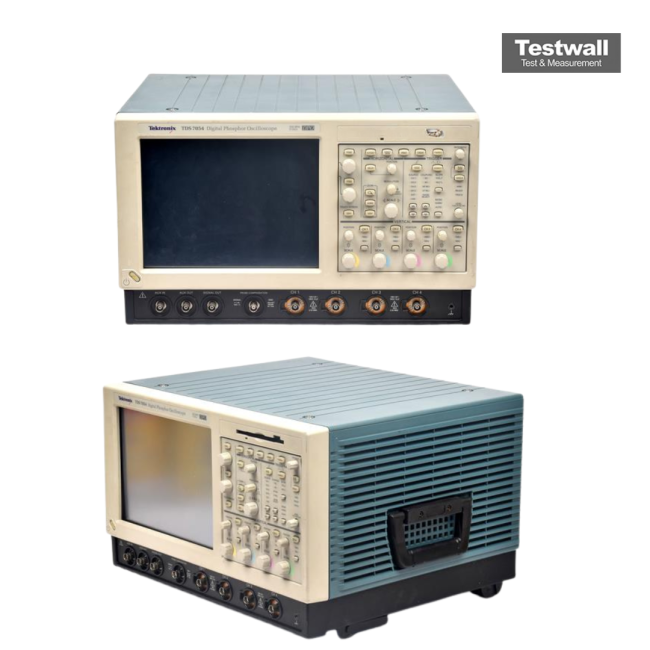

Tektronix TDS7054
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s (single channel), 2.5 GS/s (all channels) |
| Record Length | up to 16 M points per channel |
| Vertical Resolution | 8 bits |
| Rise Time | 700 ps |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4 inch color LCD |
| Waveform Capture Rate | up to 100,000 waveforms per second |
| Operating System | Windows 2000 |
Tektronix TDS7054 Options:
- TDS7054 - 1M - 2 M (1 ch), 1 M (2 ch), 500 k (4 ch) maximum record length per channel
- TDS7054 - 2M - 8 M (1 ch), 4 M (2 ch), 2 M (4 ch) maximum record length per channel
- TDS7054 - 3M - 16 M (1 ch), 8 M (2 ch), 4 M (4 ch) maximum record length per channel
| Model | TDS7054 |
|---|
The Tektronix TDS7054 Digital Phosphor Oscilloscope delivers 500 MHz bandwidth, 4 channels, and 5 GS/s sampling, ideal for analyzing high-speed signals. It supports deep memory up to 64 MB with MultiView Zoom™, rapid waveform capture with DPX™ technology, and versatile trigger capabilities. A true analog bandwidth of 7.5 GHz and advanced jitter analysis make it suitable for serial data stream analysis up to 4.25 Gb/s.
Perfect for signal integrity checks, jitter and timing analysis, and serial data verification, the TDS7054 supports debug tasks in telecom, datacom, and high-speed digital environments.
Testwall can supply the used Tektronix TDS7054, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS7054.
