Keysight (Agilent) MSO9064A
| Attribute | Value |
|---|---|
| Bandwidth | 600 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 5 GSa/s |
| Maximum Memory Depth | 500 Mpts (with memory option) |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Display | 12.1-inch XGA color LCD touchscreen |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Trigger Types | Edge, Glitch, Pattern, Transition, Runt, Setup & Hold, UART, SPI, I2C, and more |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF, or 50 Ω ± 1.5% |
Keysight (Agilent) MSO9064A Options:
- MSO9064A - 001 - RS-232/UART triggering and decode
- MSO9064A - 002 - EZJIT jitter analysis software
- MSO9064A - 003 - High-speed SDA and clock recovery
- MSO9064A - 004 - EZJIT Plus jitter analysis software
- MSO9064A - 005 - USB triggering and decode
- MSO9064A - 006 - PCI Express 1.1 triggering and decode
- MSO9064A - 007 - I²C/SPI triggering and decode
- MSO9064A - 008 - CAN, LIN, and FlexRay triggering and decode
- MSO9064A - 009 - InfiniiScan
- MSO9064A - 010 - User-defined function
- MSO9064A - 012 - InfiniiSim signal equalization
- MSO9064A - 013 - InfiniiSim basic signal de-embedding
- MSO9064A - 014 - InfiniiSim advanced signal de-embedding
- MSO9064A - 015 - Power measurement application software
- MSO9064A - 016 - Xilinx FPGA dynamic probe
- MSO9064A - 017 - Altera FPGA dynamic probe
- MSO9064A - 018 - RS-232, SPI and I2C triggering and decode bundle
- MSO9064A - 019 - MIPI D-Phy Triggering and decode
- MSO9064A - 021 - Ethernet compliance
- MSO9064A - 029 - USB2.0 compliance
- MSO9064A - 031 - DDR1 and LPDDR compliance
- MSO9064A - 032 - DDR2 and LPDDR2 compliance
- MSO9064A - 033 - DDR3 compliance
- MSO9064A - 035 - MIPI D-Phy compliance
- MSO9064A - 038 - SATA1 (1.5 GB/s triggering and decode)
- MSO9064A - 040 - User definable application
- MSO9064A - 042 - JTAG (IEEE 1149.1) triggering and decode
- MSO9064A - 043 - USB HSIC compliance test
- MSO9064A - 045 - DigRF protocol decode
- MSO9064A - 046 - SVID protocol triggering and decode
- MSO9064A - 050 - Memory upgrade to 50 Mpts/ch
- MSO9064A - 061 - MATLAB basic
- MSO9064A - 062 - MATLAB advanced
- MSO9064A - 064 - eMMC compliance
- MSO9064A - 065 - BroadR-Reach compliance
- MSO9064A - 070 - EZJIT Complete jitter analysis software
- MSO9064A - 073 - MOST compliance
- MSO9064A - 075 - MIPI RFFE protocol
- MSO9064A - 100 - Memory upgrade to 100 Mpts/ch
- MSO9064A - 200 - Memory upgrade to 200 Mpts/ch
- MSO9064A - 500 - Memory upgrade to 500 Mpts/ch
- MSO9064A - 801 - Removable solid state drive
- MSO9064A - A6J - ANSI Z540 compliant calibration
- MSO9064A - 1CM - 9000 Series oscilloscope rackmount kit (8U)
| Model | MSO9064A |
|---|

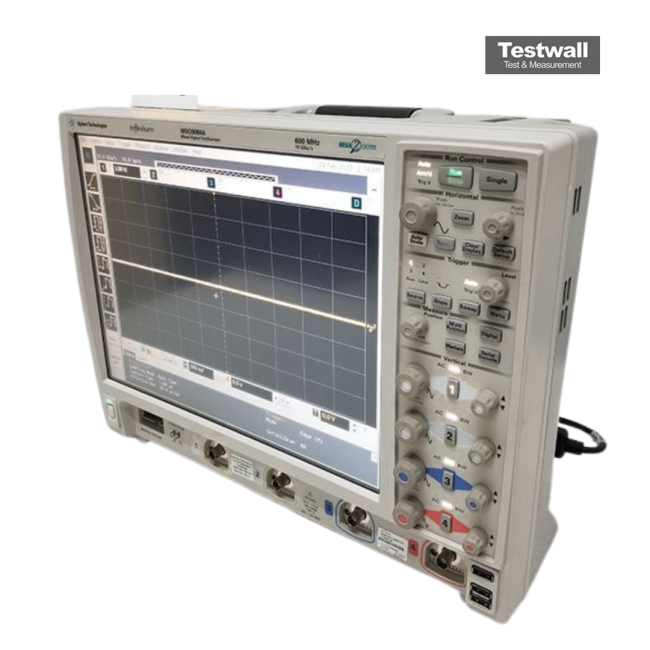

The Keysight (Agilent) MSO9064A Oscilloscope features a 600 MHz bandwidth, 4 analog and 16 digital channels, and a 10 GSa/s sample rate with upgradable memory. Its 15” XGA display and compact 9” depth make it ideal for bench environments. With advanced triggering, protocol viewers, and customizable software, this oscilloscope is built for deep signal insight and flexible debugging.
Suitable for embedded design, serial bus analysis, and protocol validation, it supports I²C, SPI, CAN, USB 2.0, and more. Options like FPGA probe and jitter analysis extend its capabilities.
Testwall can supply the used Keysight (Agilent) MSO9064A Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO9064A Oscilloscope.
