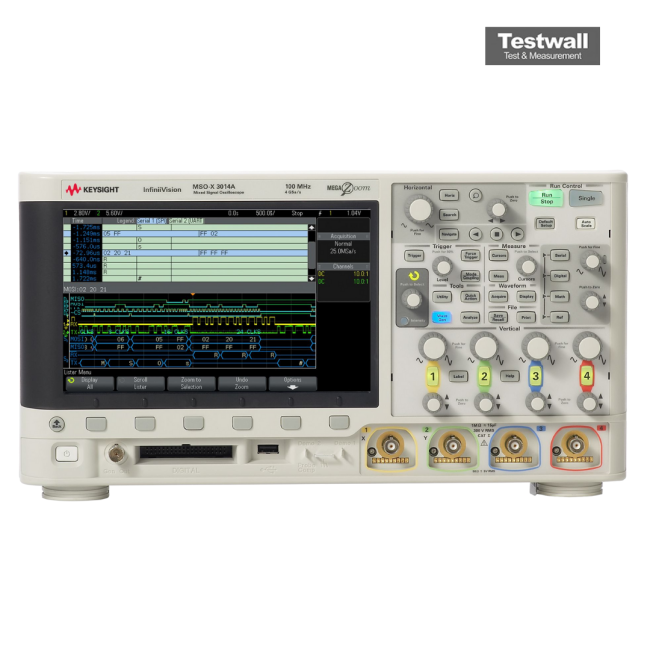

Keysight (Agilent) MSOX3014A
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 4 Mpts standard (up to 4 Mpts per channel) |
| Display | 8.5-inch WVGA (800 x 480) color display |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Triggering | Advanced triggering including I2C, SPI, UART, CAN, LIN serial triggering |
| Connectivity | USB, LAN (LXI Core 2011), USB Device (USBTMC) |
| Integrated Instruments | WaveGen built-in function/arbitrary waveform generator (optional), digital voltmeter, frequency counter |
Keysight Technologies MSOX3014A Options:
- MSOX3014A - DSOX3MEMUP - Memory upgrade to 4 Mpts half-channel
- MSOX3014A - DSOX3MSO - Upgrade to 16 digital timing channels (MSO)
- MSOX3014A - DSOX3WAVEGEN - WaveGen built-in 20 MHz function generator
- MSOX3014A - DSOXEDK - Educator's Oscilloscope Training Kit
- MSOX3014A - DSOX3MASK - Mask limit testing application
- MSOX3014A - DSOX3SGM - Segmented memory application
- MSOX3014A - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSOX3014A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- MSOX3014A - DSOX3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSOX3014A - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- MSOX3014A - U1881A - Power measurement and analysis
- MSOX3014A - B4610A - PC offline viewing
- MSOX3014A - DSOX3BW24 - Bandwidth upgrade from 100 MHz to 200 MHz (4 channel models)
- MSOX3014A - DSOX3BW34 - Bandwidth upgrade from 200 MHz to 350 MHz (4 channel models)
- MSOX3014A - DSOX3BW54 - Bandwidth upgrade from 350 MHz to 500 MHz (4 channel models)
- MSOX3014A - DSOXLAN - LAN/VGA connection module
- MSOX3014A - DSOXGPIB - GPIB connection module
- MSOX3014A - N6456A - Rack mount kit
- MSOX3014A - N6457A - Soft carrying case and front panel cover
- MSOX3014A - N6458A - Hard copy manual
| Model | MSOX3014A |
|---|
The Keysight (Agilent) MSOX3014A is a high-performance 4-channel oscilloscope with 100 MHz bandwidth, supporting 1 million wfms/s update rate, 4 GSa/s sample rate, and 2 Mpts memory depth. It features a large 8.5-inch WVGA display, MegaZoom IV technology, and an upgradable architecture supporting bandwidth upgrades up to 1 GHz.
With its 5-in-1 integration—oscilloscope, digital channels, waveform generator, voltmeter, and protocol analyzer—the MSOX3014A is perfect for versatile signal analysis and debugging applications.
Testwall can supply the used Keysight (Agilent) MSOX3014A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX3014A.
