Tektronix

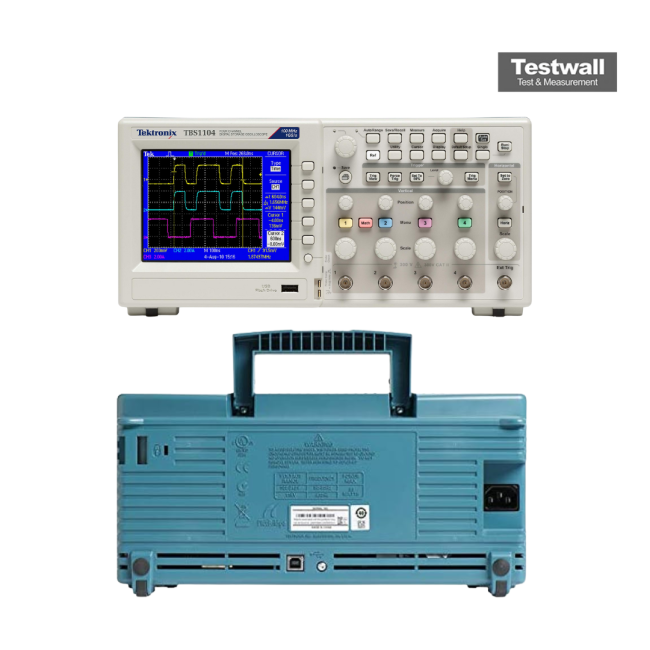

Tektronix TBS1104
100 MHz, 4 Analog Channels Oscilloscope
100 MHz Bandwidth
4 Number of Channels
1 GS/s Sample Rate
2,500 points Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 4 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Display | 7-inch WQVGA color display (800 x 480 pixels) |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Connectivity | USB 2.0 Host and Device ports |
Tektronix TBS1104 Options:
- TBS1104 - L0 - English (front-panel overlay on instrument)
- TBS1104 - L1 - French (front-panel overlay)
- TBS1104 - L2 - Italian (front-panel overlay)
- TBS1104 - L3 - German (front-panel overlay)
- TBS1104 - L4 - Spanish (front-panel overlay)
- TBS1104 - L5 - Japanese (front-panel overlay)
- TBS1104 - L6 - Portuguese (front-panel overlay)
- TBS1104 - L7 - Simple Chinese (front-panel overlay)
- TBS1104 - L8 - Standard Chinese (front-panel overlay)
- TBS1104 - L9 - Korean (front-panel overlay)
- TBS1104 - L10 - Russian (front-panel overlay)
- TBS1104 - A0 - North America power plug (115 V, 60 Hz)
- TBS1104 - A1 - Universal Euro power plug (220 V, 50 Hz)
- TBS1104 - A2 - United Kingdom power plug (240 V, 50 Hz)
- TBS1104 - A3 - Australia power plug (240 V, 50 Hz)
- TBS1104 - A5 - Switzerland power plug (220 V, 50 Hz)
- TBS1104 - A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- TBS1104 - A10 - China power plug (50 Hz)
- TBS1104 - A11 - India power plug (50 Hz)
- TBS1104 - A12 - Brazil power plug (60 Hz)
- TBS1104 - A99 - No power cord
- TBS1104 - D1 - Calibration Data Report
| Model | TBS1104 |
|---|
The Tektronix TBS1104 Digital Storage Oscilloscope delivers 100 MHz bandwidth and 4 channels with 1GS/s sampling rate, ensuring accurate signal analysis across all inputs.
It includes 2.5k point record length, 16 automated measurements, FFT analysis, advanced triggers, and USB connectivity for efficient waveform capture and analysis.
Testwall can supply the used Tektronix TBS1104, fully tested.
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality.
Please contact us directly if you need calibration or repair of the Tektronix TBS1104..
