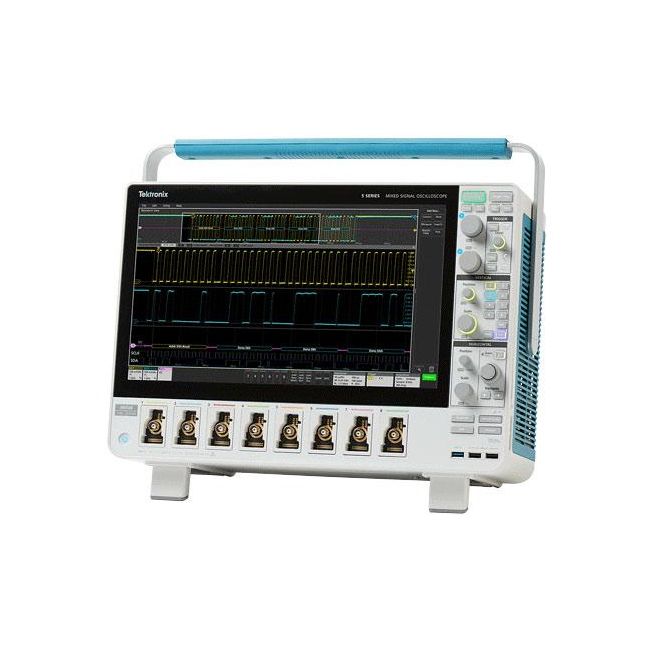

Tektronix MSO56 5-BW-350 5 Series MDO 6 Channel Mixed Domain Oscilloscope, 350 MHz
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Channels | 6 Analog Channels |
| Sample Rate | 6.25 GS/s |
| Record Length | 62.5 M points per channel |
| Vertical Resolution | 12-bit ADC (16-bit with High Resolution mode) |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Digital Channels | 48 Digital Channels (with TLP058 logic probe) |
| Spectrum Analyzer | Integrated RF spectrum analyzer up to 350 MHz |
| Connectivity | USB 3.0, USB 2.0, LAN (1000BASE-T), DisplayPort |
| Input Impedance | 1 MΩ and 50 Ω selectable |
Tektronix MSO56 5-BW-350 5 Series MDO 6 Channel Mixed Domain Oscilloscope, 350 MHz Options:
- MSO56 - 5-BW-350 - 350 MHz Bandwidth
- MSO56 - 5-BW-500 - 500 MHz Bandwidth
- MSO56 - 5-BW-1000 - 1 GHz Bandwidth
- MSO56 - 5-BW-2000 - 2 GHz Bandwidth
- MSO56 - 5-RL-125M - Extend record length to 125 Mpoints/channel
- MSO56 - 5-WIN - Add removable SSD with Microsoft Windows 10 operating system license
- MSO56 - 5-AFG - Add Arbitrary / Function Generator
- MSO56 - 5-SEC - Add enhanced security for instrument declassification and password protected enabling and disabling of all USB and Ethernet ports and firmware upgrade
- MSO56 - 5-SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MSO56 - 5-SRAUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO56 - 5-SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO56 - 5-SRAUTOSEN - Automotive sensor serial triggering and analysis (SENT)
- MSO56 - 5-SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO56 - 5-SREMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO56 - 5-SRENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO56 - 5-SRI3C - MIPI I3C (I3C decode and search only)
- MSO56 - 5-SRPM - Power Management serial triggering and analysis (SPMI)
- MSO56 - 5-SRUSB2 - USB (USB2.0 LS, FS, HS) serial triggering and analysis
- MSO56 - 5-CMAUTOEN - Automotive Ethernet automated compliance test solution (100BASE-T1 and 1000BASE-T1)
- MSO56 - 5-CMENET - Ethernet automated compliance test solution (10BASE-T/100BASE-T/1000BASE-T)
- MSO56 - 5-CMUSB2 - USB2.0 automated compliance test solution
- MSO56 - 5-DJA - Advanced Jitter and Eye Analysis
- MSO56 - 5-PWR - Power Measurement and Analysis
- MSO56 - 5-DPM - Digital Power Management
- MSO56 - 5-PS2 - Power Solution Bundle (5-PWR, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
- MSO56 - 5-PS2FRA - Power Solution Bundle (5-PWR, THDP0200, TCP0030A, two TPP0502, 067-1686-xx deskew fixture)
- MSO56 - T3 - Three Year Total Protection Plan
- MSO56 - T5 - Five Year Total Protection Plan
- MSO56 - R5 - Standard Warranty Extended to 5 Years
- MSO56 - C3 - Calibration Service 3 Years
- MSO56 - C5 - Calibration Service 5 Years
- MSO56 - D1 - Calibration Data Report
- MSO56 - D3 - Calibration Data Report 3 Years (with Option C3)
- MSO56 - D5 - Calibration Data Report 5 Years (with Option C5)
| Model | MSO56 |
|---|
The Tektronix MSO56:5-BW-2000 is a 6-channel 5 Series MSO oscilloscope with a 2 GHz bandwidth and a 15.6-inch HD touchscreen display. Featuring FlexChannel technology, each channel can operate as an analog input or eight digital inputs via TLP058 probes, offering customizable configurations up to 48 digital inputs.
This model is from the original 5 Series (not 5B), providing broad signal visibility for embedded systems, power electronics, and converter debugging, though it lacks 5B enhancements like auxiliary triggers and SSD storage.
Testwall can supply the used Tektronix MSO56:5-BW-2000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO56:5-BW-2000.
