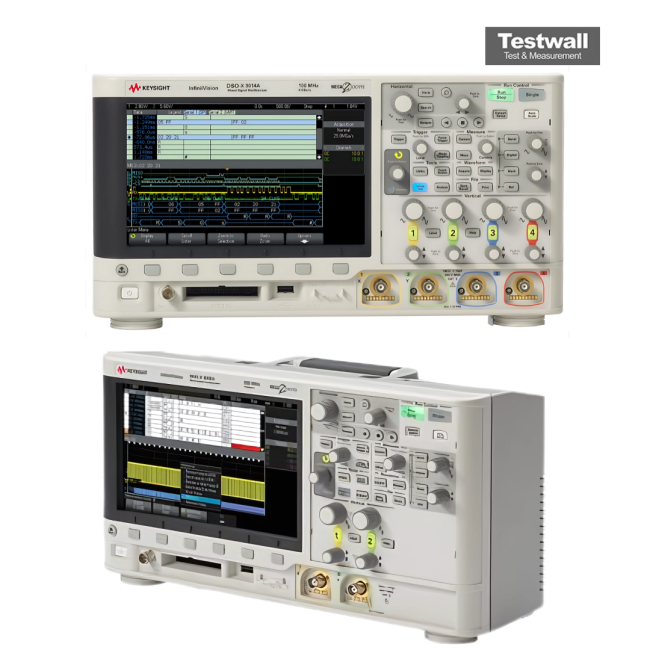

Keysight (Agilent) MSOX3052A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 2 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts standard (up to 8 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Serial Protocol Triggering and Decode | I2C, SPI, UART/RS232, CAN, LIN (optional) |
| Connectivity | USB, LAN (LXI Core), GPIB (optional) |
| Vertical Resolution | 8-bit (up to 12-bit with hardware averaging) |
Keysight (Agilent) MSOX3052A Options:
- MSOX3052A - DSOX3MEMUP - Memory upgrade (standard 2 Mpts to optional 4 Mpts)
- MSOX3052A - DSOX3SGM - Segmented memory
- MSOX3052A - DSOX3MSO - MSO upgrade: add 16 digital timing channels (for 500 MHz and below models)
- MSOX3052A - DSOX3WAVEGEN - WaveGen built-in 20 MHz function/arbitrary waveform generator
- MSOX3052A - DSOXDVM - Integrated 3-digit digital voltmeter (DVM)
- MSOX3052A - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSOX3052A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- MSOX3052A - DSOX3AUTO - Automotive serial triggering and analysis (CAN/LIN)
- MSOX3052A - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3052A - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- MSOX3052A - DSOX3AERO - Aerospace serial triggering and analysis (MIL-STD 1553 and ARINC 429)
- MSOX3052A - DSOX3PWR - Power measurements and analysis application
- MSOX3052A - DSOX3MASK - Mask/limit testing
- MSOX3052A - DSOX3VID - Enhanced video/TV triggering and analysis application package
- MSOX3052A - DSOX3ADVMATH - Advanced waveform math
- MSOX3052A - DSOXEDK - Educator's oscilloscope training kit
- MSOX3052A - DSOX3BW54 - License-only bandwidth upgrade: 350 MHz to 500 MHz, 4 ch
- MSOX3052A - DSOX3BW14 - Return-to-Keysight service center bandwidth upgrade: 500 MHz to 1 GHz, 4 ch
- MSOX3052A - DSOXLAN - LAN/VGA connection module
- MSOX3052A - DSOXGPIB - GPIB connection module
| Model | MSOX3052A |
|---|
The Keysight MSOX3052A is a 2-channel, 500 MHz oscilloscope from the InfiniiVision 3000 X-Series, featuring a 4 GSa/s sample rate, 8.5" WVGA display, and MegaZoom IV memory. It supports 16 digital channels, built-in 20 MHz waveform generator, and segmented memory, integrating five instruments in one device.
Perfect for signal analysis and embedded system debug, the MSOX3052A offers bandwidth upgradability, 1 million wfms/s update rate, and advanced trigger and measurement capabilities for high-speed applications.
Testwall can supply the used Keysight MSOX3052A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight MSOX3052A
