Keysight (Agilent) MSOX3054A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts standard (up to 8 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Serial Protocol Triggering and Analysis | I2C, SPI, UART/RS232, CAN, LIN (with optional licenses) |
| Connectivity | USB, LAN (LXI Core), GPIB (optional) |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
Keysight Technologies MSOX3054A Options:
- MSOX3054A - DSOX3MEMUP - Memory upgrade to 4 Mpts half-channel
- MSOX3054A - DSOX3MSO - Upgrade to 16 digital timing channels (MSO)
- MSOX3054A - DSOX3WAVEGEN - WaveGen built-in 20 MHz function generator
- MSOX3054A - DSOXEDK - Educator's Oscilloscope Training Kit
- MSOX3054A - DSOX3MASK - Mask limit testing application
- MSOX3054A - DSOX3SGM - Segmented memory application
- MSOX3054A - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSOX3054A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- MSOX3054A - DSOX3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSOX3054A - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- MSOX3054A - U1881A - Power measurement and analysis
- MSOX3054A - B4610A - PC offline viewing
- MSOX3054A - DSOX3BW54 - Bandwidth upgrade from 350 MHz to 500 MHz on 4 channel models
- MSOX3054A - DSOXLAN - LAN/VGA connection module
- MSOX3054A - DSOXGPIB - GPIB connection module
| Model | MSOX3054A |
|---|

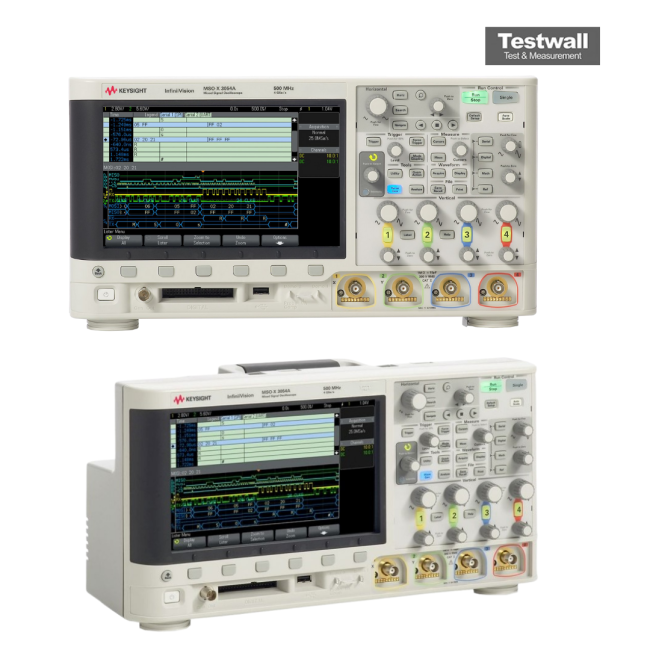

The Keysight (Agilent) MSOX3054A is a 500 MHz, 4+16-channel oscilloscope with MegaZoom IV memory and 4 GSa/s sample rate. It features a large 8.5-inch WVGA display, supports up to 1M waveforms/sec update rate, and integrates oscilloscope, logic analyzer, waveform generator, voltmeter, and protocol analysis into a single compact unit.
Engineered with 2 Mpts standard memory (4 Mpts optional), it ensures deep capture and analysis with optional segmented memory and upgradeable bandwidth up to 1 GHz. Input sensitivity ranges from 1mV/div to 5V/div.
Testwall can supply the used Keysight (Agilent) MSOX3054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX3054A
