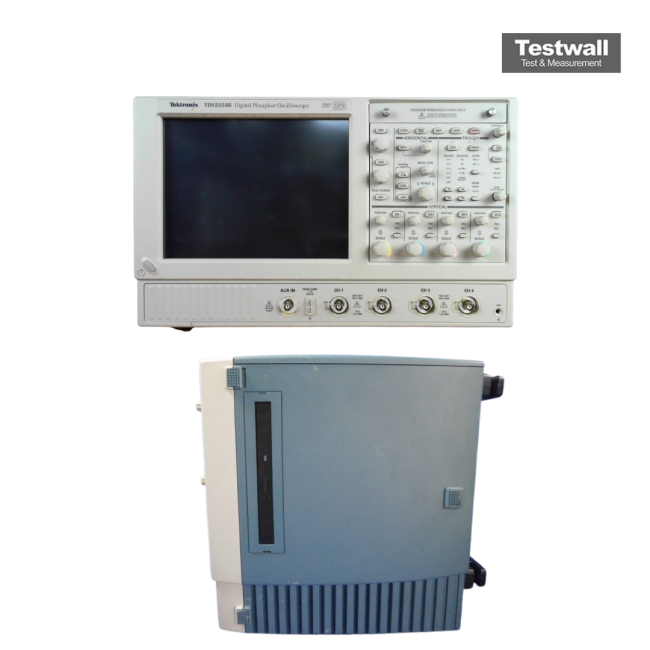

Tektronix TDS5034B
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s (single channel), 2.5 GS/s (2 channels), 1.25 GS/s (4 channels) |
| Record Length | Up to 16 M points per channel |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD, 1024 x 768 resolution |
| Operating System | Windows XP Embedded |
| Connectivity | USB, Ethernet (LAN), GPIB (optional), CompactFlash slot |
| Trigger Types | Edge, Glitch, Runt, Transition, Window, Timeout, Pattern, State, Setup/Hold, Video, Serial (optional) |
Tektronix TDS5034B Options:
Options available for the Tektronix TDS5000 / TDS6000 / TDS7000 / CSA7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS5034B - 2M - Extended record length
- TDS5034B - 3M - Extended record length
- TDS5034B - SM - Serial communication mask testing
- TDS5034B - JT3 - TDSJIT3 jitter and timing analysis
- TDS5034B - PWR - TDSPWR3 power measurement and analysis
- TDS5034B - USB - TDSUSB2 USB 2.0 compliance testing
- TDS5034B - ET3 - TDSET3 Ethernet compliance testing
- TDS5034B - 1K - Instrument cart
- TDS5034B - 1R - Rack mount kit
The Tektronix TDS5034B Oscilloscope offers 350 MHz bandwidth, 5 GS/s sampling rate, 4 input channels, and up to 16 M record length for advanced signal capture. It features over 53 automated measurements categorized by amplitude, time, and communication, enabling deep signal insight. The unit also supports remote control, pass/fail testing, and advanced triggering for precise diagnostics.
Ideal for R&D and production testing, the TDS5034B’s customizable controls and fast waveform capture rate ensure accurate, efficient analysis of complex signals in real time.
Testwall can supply the used Tektronix TDS5034B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS5034B.
