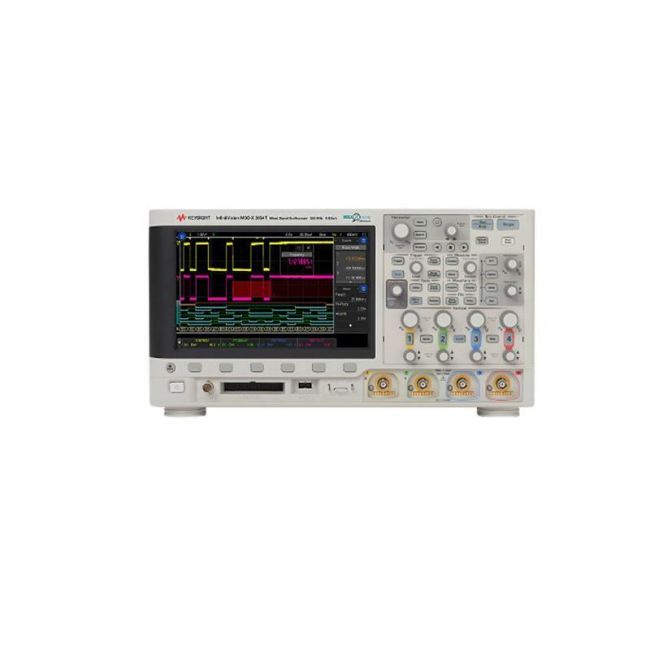

Keysight (Agilent) MSOX3054T
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 4 Mpts per channel) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Serial Protocol Triggering and Analysis | I2C, SPI, UART/RS232, CAN, LIN (standard) |
| Connectivity | USB, LAN (LXI Core), GPIB (optional) |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
Keysight (Agilent) MSOX3054T Options:
- MSOX3054T - DSOXT3MSO - MSO upgrade: add 16 digital timing channels
- MSOX3054T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- MSOX3054T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- MSOX3054T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- MSOX3054T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic)
- MSOX3054T - DSOX3FLEX - FlexRay serial triggering and analysis
- MSOX3054T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- MSOX3054T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- MSOX3054T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- MSOX3054T - DSOXT3DVMCTR - Integrated digital voltmeter and 8-digit counter
- MSOX3054T - DSOX3PWR - Power analysis application
- MSOX3054T - DSOX3MASK - Mask limit testing
- MSOX3054T - DSOX3VID - Enhanced video/TV application package
- MSOX3054T - DSOXEDK - Education and training kit
- MSOX3054T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3DVMCTR, DSOXEDK)
- MSOX3054T - DSOXT3B3T52 - License only 350MHz to 500MHz upgrade, 2ch
- MSOX3054T - DSOXT3B3T54 - License only 350MHz to 500MHz upgrade, 4ch
- MSOX3054T - DSOXT3B5T102U - Service center 500MHz to 1 GHz upgrade, 2ch
- MSOX3054T - DSOXT3B5T104U - Service center 500MHz to 1 GHz upgrade, 4ch
- MSOX3054T - DSOXLAN - LAN/VGA connection module
- MSOX3054T - DSOXGPIB - GPIB connection module
| Model | MSOX3054T |
|---|
The Keysight (Agilent) MSOX3054T Mixed Signal Oscilloscope offers a 1 million waveforms/second update rate and an intuitive capacitive touchscreen. Featuring zone touch trigger, 1 mV/div signal integrity, and up to 12-bit resolution with high-res mode, it enables efficient debugging and signal clarity. Equipped with 37 auto measurements, USB connectivity, and versatile gating options, it ensures precise signal analysis with ease.
Ideal for engineers and technicians, the MSOX3054T supports 8 concurrent measurements and provides PC-based control through BV0004B software, making it suitable for complex testing environments.
Testwall can supply the used Keysight (Agilent) MSOX3054T, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX3054T.
